Ethereum block architecture

Question

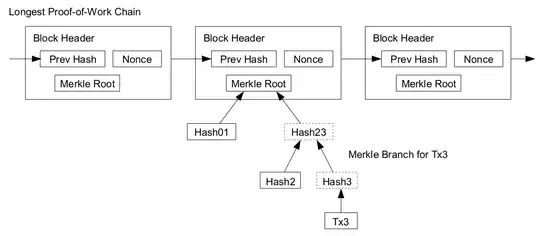

Where can I find a description (preferably a diagram like below) showing the block structure in an Ethereum blockchain?

^{Credits: Wikipedia}

Correct me if I am wrong but this is not only relevant to Proof of Work, the Proof of stake will still use the same Merkle Tree right? — Cyberience, Jun 27 '18 at 07:03
@Cyberience yes, Merkle trees are still being used today (Sep 2023, post-Merge). But Merkle trees will be replaced by Verkle trees during The Verge. Refer to this blog post for more info on Verkle trees. — Paul Razvan Berg, Sep 22 '23 at 13:05

Lee · Answer 1 · 2016-10-05T17:52:57.947

162

Here's my interpretation, based on the yellow paper:

...the Tries should look more like this:

edited Oct 05 '16 at 17:52

answered Jun 22 '16 at 10:26

Lee

8,548
6
46
80

7

Hi @atomh33ls, do you mind sharing the source file for the illustrations (in whatever software format you used to create them). I would like to create an illustration for transactions trie. It will look almost the same as state trie except some details will be changed. Thank you! – medvedev1088 Oct 26 '17 at 10:29
Explain them to us in simple english – NaN Nov 27 '17 at 12:36
@atomh33ls I would also be interested in the source files. I really like this amazing overview! What software did you use? – kn1g Jun 08 '19 at 17:13
2

@atomh33ls +1 to the source file, please. If not, I'd also be happy recreating it in mermaid.js so the community could co-edit it. The three specific changes I have in mind are adding a note that the key size is shortened for simplified purposes, putting the tree complexity (max depth) in the bottom right, and adding and example of an extension node with prefix 1[]. – Olshansky Apr 23 '22 at 00:35
2

@Olshansk The main diagram svg is here. Alas I don't have the merkle diagram to hand. They seem like good ideas - will be interesting to see what you come up with.. – Lee Apr 25 '22 at 12:21
1

Has anyone dived into the details of whether there were changes to this after "the merge"? – Olshansky Nov 05 '22 at 19:05
1

@Olshansky the first diagram definitely requires an update after The Merge. Uncle blocks are now called dunkles. Also, these diagrams will become increasingly outdated as Ethereum transitions to The Surge, The Verge, The Purge, and eventually The Purge. – Paul Razvan Berg Sep 22 '23 at 09:20

score 82 · Accepted Answer · edited Feb 07 '18 at 16:06

82

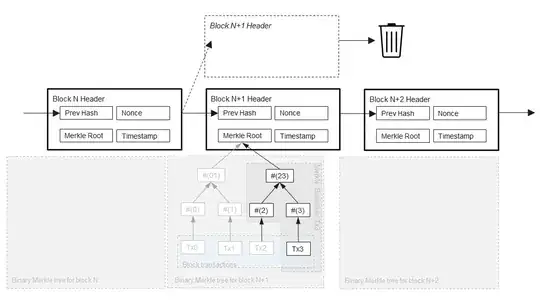

Lets first start with my adaptation of this figure illustrating the Bitcoin block structure:

So far so good. All fairly basic.

Enter Ethereum and things get a wee bit more complex. After reading through this and this, and as per @eth 's recommendation this, my best interpretation is the figure below:

The header field definitions are available in section 4.3 of the yellow paper.

edited Feb 07 '18 at 16:06

medvedev1088

10,996
5
35
63

answered Jan 29 '16 at 17:48

zanzu

5,360
4
25
43

2

Uncles is a hash (of a list of uncles), Yellow Paper has: "The Keccak 256-bit hash of the ommers list portion of this block". Codehash is just a hash since contracts are immutable. The pointers point to "hash of whole block header" (the Keccak-256 hash of all the bytes in the block header). To have a full diagram, should really consult the Yellow Paper... – eth Jan 29 '16 at 22:53
Updated response after consulting the YP. Starting to get clearer now. Thanks! – zanzu Feb 01 '16 at 12:34
Why are the transactions from block N linked to those of block N+1? – Sebi Jun 10 '16 at 08:31
3

These links correspond to contract state that has not changed in between blocks. Referencing the state from the previous blocks instead of replicating is more efficient from a block size perspective. – zanzu Jun 10 '16 at 09:49
1

You forgot the difficulty in bitcoin headers. – Jus12 Sep 23 '16 at 16:52
Are new mined transactions included in the block as a 'reference' (e.g: only hash of previously broadcasted transaction in mempool) or is the transaction structure fully inlined in the block?
If inlined/copied: there is some redundant data ineffeciency, right? once where transaction is broadcasted into mempool and then when copied to the block?

If block transaction references mempool transaction: what happens if a node validating block has an unknown transaction? e.g: transaction is not in node mempool?
– Saad Malik Mar 29 '18 at 07:58

score 24 · Answer 3 · answered Nov 28 '17 at 12:48

24

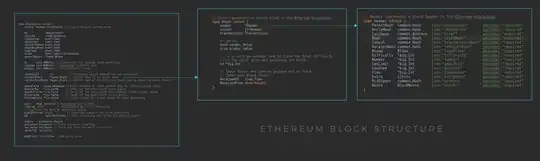

Here is a complete structure of a block and where it plays its role in Ethereum's blockchain.

You asked for a diagram but i think this would be more explanatory.

answered Nov 28 '17 at 12:48

Vishal Sharma

518
3
9

score 12 · Answer 4 · answered Jan 21 '16 at 18:57

The description can be found in the Yellow Paper which is the formal specification of the Ethereum protocol.

Here are the main pieces of a block:

4.3. The Block. The block in Ethereum is the collection of relevant pieces of information (known as the block header), H, together with information corresponding to the comprised transactions, T, and a set of other block headers U that are known to have a parent equal to the present block’s parent’s parent.

No diagram though (an opportunity for the community).

ComeonI though you guys would do better at this explanation – NaN Nov 27 '17 at 12:37 — NaN, Nov 27 '17 at 12:37

score 10 · Answer 5 · edited Oct 26 '17 at 12:22

10

Vitalik Buterin gives a compact answer:

Every block header in Ethereum contains 3 trees for three kinds of objects: Transactions, Receipts (essentially, pieces of data showing the effect of each transaction), State.

You can read a longer version with pictures here.

edited Oct 26 '17 at 12:22

Achala Dissanayake

5,819
15
28
38

answered Nov 20 '16 at 13:25

Jouko Salonen

101
1
3

score 10 · Answer 6 · answered Jan 21 '16 at 19:04

10

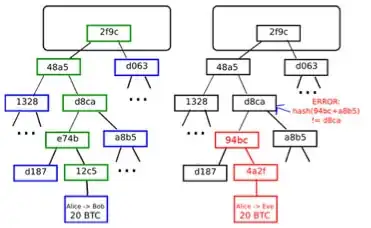

Here's a picture from V's article regarding data structures for light clients:

https://blog.ethereum.org/2014/02/18/ethereum-scalability-and-decentralization-updates/

answered Jan 21 '16 at 19:04

high110

4,756
1
21
43

4

The above is an abstraction of a Merkle tree. I'm rather looking for the Ethereum block structure (including all the actual header fields). – zanzu Jan 22 '16 at 08:57

score 6 · Answer 7 · answered Dec 13 '21 at 22:11

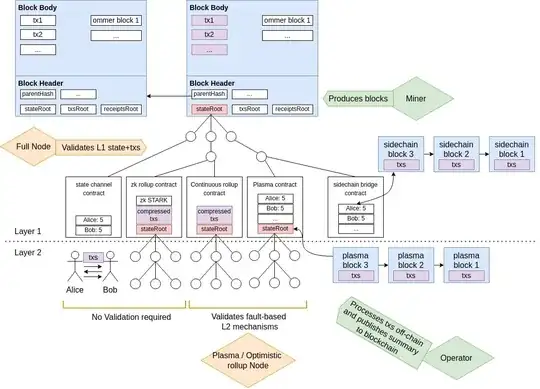

Extrapolating from the syntactic block structure, we can also ask what the semantic ethereum world state structure looks like. I use this diagram to explain the relationship between "on-chain", "off-chain", and everything in between, including L2 scaling solutions. Please see my accompanying blog post for more details.

score 1 · Answer 8 · answered Jun 25 '23 at 01:48

1

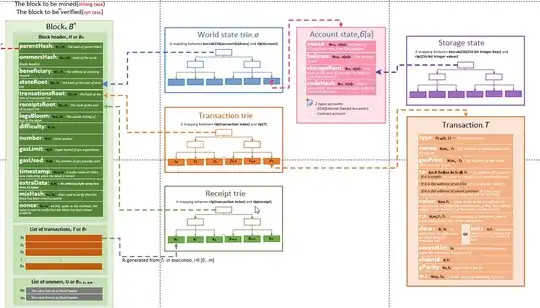

Here is my interpretation based on the latest version of yellow paper(BERLIN VERSION beacfbd – 2022-10-24)

here is the whole link: https://medium.com/@JanessaTech/ethereum-a-latest-interpretation-of-yellow-paper-29ec14d05867

answered Jun 25 '23 at 01:48

Juan Zhao

11
