How to recreate this selected matcap material in Cycles? It's most glossy in the center and has this special coat.

enter image description here

Wildfire
  • 400
  • 1
  • 5
  • 19

1 Answers1

3

To recreate this matcap try to use some Layer Weight nodes. Experiment with the Color Ramp node's modes and slider's placement also.
enter image description here

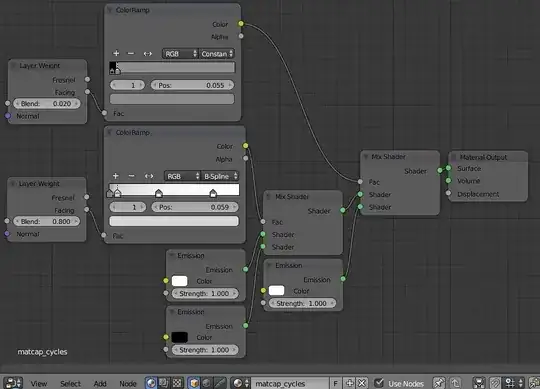

Here's my nodes setup. I basically added two Emission shaders- one with the white color and the other one with black color. Then used the Layer Weight (Facing) (with different Blend values) and Color Ramp (with different modes- Constant for the bright rim and B-Spline for the blurry interior of the sphere ) nodes. enter image description here

Here's the test I've done using my low poly gerbil model. The matcap and the render result look almost the same. It is a matter of tweaking some things. If you want to play with the nodes to make the rendered matcap material look perfect here's the .blend: enter image description here
