20

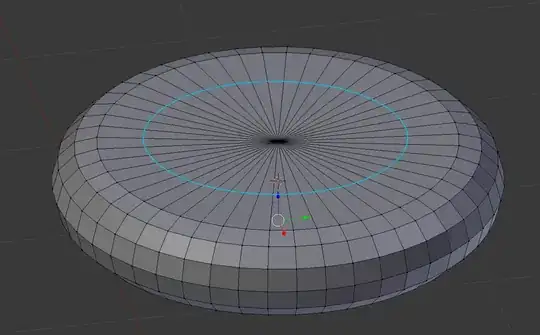

Need a way to do a loopcut- ish thingy on the blue line

enter image description here

gandalf3
  • 157,169
  • 58
  • 601
  • 1,133
Emlingur
  • 435
  • 1
  • 6
  • 12
  • Please accept an answer if it resolved the question. And I think that @gandalf3's answer is the best. – PhoneixS Sep 28 '15 at 10:14

2 Answers2

26

One way is to use vertex bevel (⎈ Ctrl⇧ ShiftB):

enter image description here

Once the triangle fan is converted to quads you can add loopcuts. In the gif I converted the ngon resulting from the bevel to a triangle fan with Poke (⎇ AltP).

As an alternative to bevel, you might also try Inset (I):

enter image description here

gandalf3
  • 157,169
  • 58
  • 601
  • 1,133
7
  1. Select all the triangle fan edges in Edge Selection Mode.

enter image description here

  1. Open Specials Menu using W button and select subdivide.

  2. Hit F6 button right after using Subdivide operation to open Subdivide Menu and adjust the number of subdivisions.

enter image description here

Or change the number of subdivisions in Subdivide Operator panel.

enter image description here

Denis
  • 13,059
  • 7
  • 60
  • 81
