Skirt from online Skirts

I am trying to re-create a skirt with ruffles like the grey one above with the blue shirt, I have already run a cloth simulation, but I cannot get the shape to look right on my version of the skirt.

Everything looks very flat because I am only using two subdivided planes.

Duarte Farrajota Ramos
  • 59,425
  • 39
  • 130
  • 187
Lorkaji
  • 173
  • 1
  • 4
  • 2
    The cloth is folded on the top and then stitched together. – Thomas Weller Jan 09 '22 at 16:47
  • I've never tried the cloth simulation myself, but from what I've seen in tutorials, I don't believe achieving that skirt with a sim is impossible. Of course I could be wrong, tho. – Hrishav Saha Jan 09 '22 at 16:49
  • Please edit the question to limit it to a specific problem with enough detail to identify an adequate answer. – Community Jan 09 '22 at 17:27

1 Answers1

39

You could try it this way:

Create a cone:

enter image description here

Create a vertex group, that will be the cloth pin group:

enter image description here

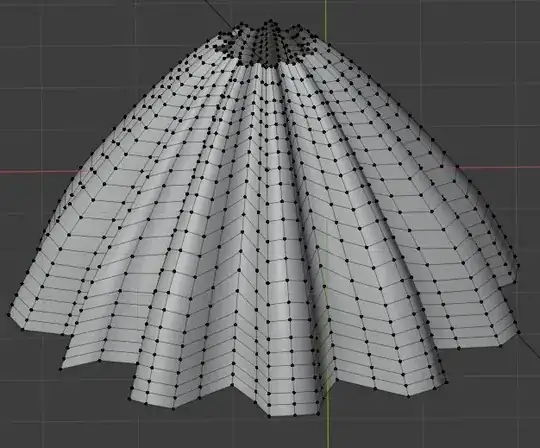

Give it 2 shapekeys, select the second one and scale one vertical edge out of several (make it a bit heterogeneous):

enter image description here

Give your object a Cloth simulation, choose the group as pin group, choose Cotton presets for example, increase the Quality Steps, the Vertex Mass, increase the Collisions Quality to 4, enable Self Collisions. Then keyframe the second shapekey from 0 to 1:

enter image description here

You can add fake folds with a Bump node and a Noise Texture that you stretch on Z.
