Just came across a plywood joint mechanism, which I found very interesting as new woodworker. Basically I don't know what it is called and can't find any in our local market. I am attaching the photos here:

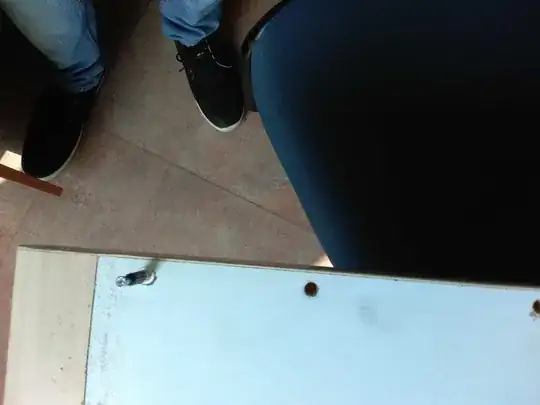

  • Screw 1: This is the screw which goes inside the white bit

enter image description here

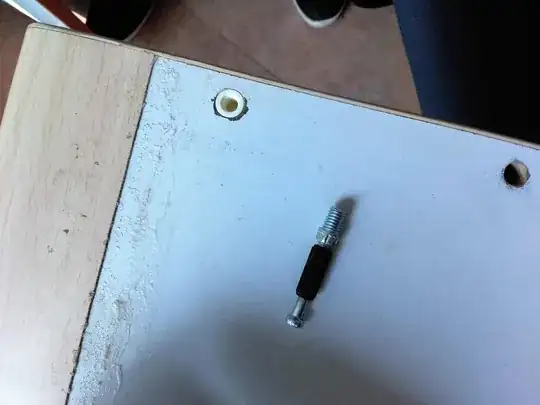

  • Screw 2: This screw is positioned perpendicular to Screw 1 through a hole.

enter image description here

  • Looks like this when Screw 1 is put inside

enter image description here

Now, could anybody tell me :-
1. What are the name of the screws.
2. What is the mechanism called.

rob
  • 18,704
  • 9
  • 54
  • 129
mustangDC
  • 275
  • 1
  • 2
  • 7
  • At least over here in Europe, these are extremely common in mass-produced flat pack furniture. A lot of stuff from Ikea is constructed in this way. – Omar and Lorraine Feb 11 '17 at 15:26
