Table with variable-height rows?

Question

How can I achieve variable-height rows on a table?

Specifically, in the MWE below I would like to reduce the heights of rows 2-3 and 9-11, as indicated.

Thanks for any help!

MWE:

\documentclass[class=scrreprt,fontsize=10pt]{standalone}
\usepackage{booktabs}
\aboverulesep=0ex
\belowrulesep=0ex
\usepackage{multirow}
\usepackage{array}
\newcolumntype{?}{!{\vrule width 1pt}}
\begin{document} \renewcommand{\arraystretch}{1.7}% \begin{tabular}{ @{}?r| >{\centering\arraybackslash\leavevmode} >{\centering\arraybackslash\leavevmode} ?@{}% } \multicolumn{3}{c}{\textbf{Performance \cmidrule[1.0pt]{1-3} \multirow{2}{*}{\textbf{Technology}}& & \midrule% \multicolumn{1}{?r|}{\textbf{Supply}}& \midrule% \multicolumn{1}{?r|}{\textbf{Sampling rate}}& \midrule% \multicolumn{1}{?r|}{\textbf{Resolution}}& \midrule% \multicolumn{1}{?r|}{\textbf{Input range}}& \midrule% \multicolumn{1}{?r|}{\textbf{ERBW}}& \cmidrule[1.0pt]{1-3} \multicolumn{1}{?r|}{\textbf{Performance}}& \multicolumn{1}{?r|}{\textbf{with Nyquist}}& \cmidrule[0.5pt]{2-3} \multicolumn{1}{?r|}{\textbf{input}}& \cmidrule[0.5pt]{1-3} \multicolumn{1}{?r|}{\textbf{ENOB [bit]}}& \midrule% \multicolumn{1}{?r|}{\textbf{SNDR [dB]}}& \midrule% \multicolumn{1}{?r|}{\textbf{SFDR [dB]}}& \midrule% \multicolumn{1}{?r|}{\textbf{$|$THD$|$ [dB]}}& \cmidrule[1.0pt]{1-3} \multicolumn{1}{?r|}{\textbf{Power [mW]}}& \midrule% \multicolumn{1}{?r|}{\textbf{FoM${W}$ \midrule% \multicolumn{1}{?r|}{\textbf{FoM$_{S}$ [dB]}}& \cmidrule[1.0pt]{1-3} \multicolumn{1}{?r|}{\textbf{Core area}}& \cmidrule[1.0pt]{1-3} \end{tabular}% \end{document}%

p{0.7cm}| p{0.7cm} summary}}\ \multicolumn{2}{c?}{16 nm FF}\ \multicolumn{2}{c?}{CMOS}\ \multicolumn{2}{c?}{0.9 V}\ \multicolumn{2}{c?}{1-500 MS/s}\ \multicolumn{2}{c?}{11.5 bit}\ \multicolumn{2}{c?}{1.8 V${pp,d}$}\ \multicolumn{2}{c?}{900 MHz}\ \multicolumn{2}{c?}{\textbf{Reference}}\ \multicolumn{2}{c?}{\textbf{regulation}}\ \textbf{OFF}    &\textbf{ON}\ 10.16           &10.05\ 62.9            &62.3\ 75.5            &75.5\ 71.7            &71.8\ 2.8             &3.3\ [fJ/c.s.]}}&     4.9             &6.2\ 172.4           &171.1\ \multicolumn{2}{c?}{0.0084 mm$^2$}\

Output (left: actual, right: desired):

Looks like you want either https://tex.stackexchange.com/questions/419647/how-do-i-use-multirow-in-latex or https://tex.stackexchange.com/questions/2441/how-to-add-a-forced-line-break-inside-a-table-cell/599076#599076 — user202729, Nov 19 '21 at 16:00

score 1 · Answer 1 · answered Nov 19 '21 at 17:34

Using makecell

\documentclass[class=scrreprt,fontsize=10pt]{standalone}
\usepackage{booktabs}
\aboverulesep=0ex
\belowrulesep=0ex
\usepackage{multirow}
\usepackage{array}
\newcolumntype{?}{!{\vrule width 1pt}}
\usepackage{makecell}
\begin{document}
\renewcommand{\arraystretch}{1.7}%
\begin{tabular}{
    @{}?r|
    >{\centering\arraybackslash\leavevmode}p{0.7cm}|
    >{\centering\arraybackslash\leavevmode}p{0.7cm}
    ?@{}%
}
\multicolumn{3}{c}{\textbf{Performance summary}}\
\cmidrule[1.0pt]{1-3}
\textbf{Technology}&\multicolumn{2}{c}{\makecell{16 nm FF \ CMOS}}\
\midrule%
\multicolumn{1}{?r|}{\textbf{Supply}}&                  \multicolumn{2}{c?}{0.9 V}\
\midrule%
\multicolumn{1}{?r|}{\textbf{Sampling rate}}&           \multicolumn{2}{c?}{1-500 MS/s}\
\midrule%
\multicolumn{1}{?r|}{\textbf{Resolution}}&              \multicolumn{2}{c?}{11.5 bit}\
\midrule%
\multicolumn{1}{?r|}{\textbf{Input range}}&             \multicolumn{2}{c?}{1.8 V${pp,d}$}\
\midrule%
\multicolumn{1}{?r|}{\textbf{ERBW}}&                    \multicolumn{2}{c?}{900 MHz}\
\cmidrule[1.0pt]{1-3}
\multirow{2}{*}{\textbf{\makecell[r]{Performance\ with Nyquist\ Input}}}& \multicolumn{2}{c?}{\textbf{\makecell{Reference\ regulation}}}\
\cmidrule[0.5pt]{2-3}
&                   \textbf{OFF}    &\textbf{ON}\
\cmidrule[0.5pt]{1-3}
\multicolumn{1}{?r|}{\textbf{ENOB [bit]}}&              10.16           &10.05\
\midrule%
\multicolumn{1}{?r|}{\textbf{SNDR [dB]}}&               62.9            &62.3\
\midrule%
\multicolumn{1}{?r|}{\textbf{SFDR [dB]}}&               75.5            &75.5\
\midrule%
\multicolumn{1}{?r|}{\textbf{$|$THD$|$ [dB]}}&          71.7            &71.8\
\cmidrule[1.0pt]{1-3}
\multicolumn{1}{?r|}{\textbf{Power [mW]}}&              2.8             &3.3\
\midrule%
\multicolumn{1}{?r|}{\textbf{FoM${W}$ [fJ/c.s.]}}&     4.9             &6.2\
\midrule%
\multicolumn{1}{?r|}{\textbf{FoM$_{S}$ [dB]}}&          172.4           &171.1\
\cmidrule[1.0pt]{1-3}
\multicolumn{1}{?r|}{\textbf{Core area}}&               \multicolumn{2}{c?}{0.0084 mm$^2$}\
\cmidrule[1.0pt]{1-3}
\end{tabular}%
\end{document}%

Thanks so much for the answer, Dan; this is a quick workaround that solves the problem! — dontpanic, Nov 27 '21 at 06:45

score 1 · Accepted Answer · answered Nov 19 '21 at 21:42

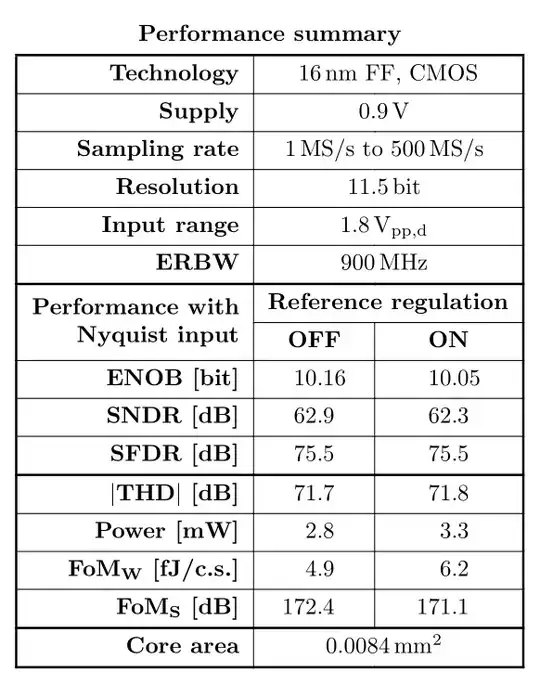

With use of tabularray package with tblr libraries siunitx:

\documentclass[class=scrreprt,fontsize=10pt, border=3mm]{standalone}
\usepackage{tabularray}
\UseTblrLibrary{siunitx}
\begin{document}
\begin{tblr}{hline{2,8,13,Y,Z}=1pt, hline{3-7,9-12,14-16},
             vline{2,3} = {2-Z}{solid}, vline{1,Z} = {2-Z}{1pt},
             colspec = {     Q[r, wd=9em, font=\bfseries]
                        *{2}{Q[c, si={table-format=3.2}, wd=4em]}
                       },
            row{1}   = {font=\bfseries}
            }
\SetCell[c=3]{c} Performance summary &   &                          \
Technology      & \SetCell[c=2]{c}  {{{\qty{16}{nm} FF, CMOS}}}

                                                            &       \
Supply          & \SetCell[c=2]{c}  {{{\qty{0.9}{V} }}}     &       \
Sampling rate   & \SetCell[c=2]{c}  {{{\qtyrange{1}{500}{MS/s} }}}
                                                            &       \
Resolution      & \SetCell[c=2]{c}  {{{\qty{11.5}{bit} }}}  &       \
Input range     & \SetCell[c=2]{c}  {{{\qty{1.8}{V_{pp,d}} }}}

                                                            &       \
ERBW            & \SetCell[c=2]{c}  {{{\qty{900}{MHz} }}}   &       \
\SetCell[r=2]{r}
Performance with Nyquist input
                & \SetCell[c=2]{c}  \textbf{Reference regulation}
                                                            &       \
                & \textbf{OFF}  &   \textbf{ON}                     \
ENOB [bit]      &   10.16       &   10.05                           \
SNDR [dB]       &   62.9        &   62.3                            \
SFDR [dB]       &   75.5        &   75.5                            \
$|$THD$|$ [dB]  &   71.7        &   71.8                            \
Power [mW]      &    2.8        &    3.3                            \
FoM\textsubscript{W} [fJ/c.s.]
                &    4.9        &    6.2                            \
FoM\textsubscript{S} [dB]
                &  172.4        &  171.1                            \
Core area       & \SetCell[c=2]{c}  {{{\qty{0.0084}{mm^2} }}}   &   \
\end{tblr}
\end{document}

Thanks for the comprehensive answer, Zarko. It took me a while to decrypt what's going on there, but switching to tabularray/tblr does solve this problem quite elegantly. Thanks! — dontpanic, Nov 27 '21 at 06:47
