Document header with tikz

Question

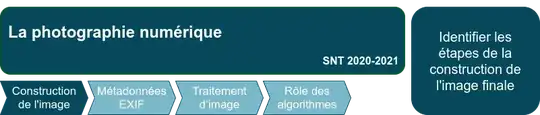

Until now I had been using drawio to do the header's of some of my documents. I would like to shift to tikz, could anyone help me to do so ?

Below what I have done. It's not perfect but it's a start. Help would be appreciated:

for positioning nodes in relation to each other;
to put several texts in different places in the same node;
for the shape of the arrow, I would like one with an inside angle at the back.

\documentclass[tikz]{standalone}
\usepackage{tikz}
\usepackage{xcolor}
\definecolor{darkblue}{RGB}{9,72,90}
\definecolor{lightblue}{RGB}{124,184,201}
\usetikzlibrary{positioning,shapes.arrows}
\begin{document}
\begin{tikzpicture}
    \node [rectangle,draw=darkblue,fill=darkblue,thick,rounded corners,minimum height=2cm,minimum width=13cm,text=white] (titre) {\large{La photographie numérique}};
    \node [rectangle,draw=darkblue,fill=darkblue,thick,rounded corners,minimum height=3cm, text width=5cm, text=white] (competences) [right=of titre] {Identifier les étapes de la construction de l'image finale};
    \node[single arrow, draw=darkblue,fill=lightblue, single arrow head extend=0cm,text=white] (un) [below=of titre] {Construction de l'image};
    \node[single arrow, draw=darkblue,fill=lightblue, single arrow head extend=0cm,text=white]
(deux) [right=of un] {Métadonnées EXIF};
\node[single arrow, draw=darkblue,fill=lightblue, single arrow head extend=0cm,text=white]
(trois) [right=of deux] {...};
\end{tikzpicture}

It's almost done ! I need some help to align the arrows on the left and the two nodes by the top. Thanks.

\documentclass[tikz,border=2pt]{standalone}
\usetikzlibrary{chains, positioning, shapes.symbols}
\usepackage{xcolor}
\definecolor{darkblue}{RGB}{9,72,90}
\definecolor{lightblue}{RGB}{124,184,201}
\begin{document}
\begin{tikzpicture}[
    node distance = 2pt,
    start chain = going right,
    start/.style = {signal,
                    draw=darkblue,
                    fill=lightblue,
                    text width=2cm,
                    minimum height=1cm,
                    font=\scriptsize,
                    text=white,
                    signal pointer angle=120, on chain},
    cont/.style = {start,
                    signal from=west}
    ]
\node[start](a) {\bfseries Construction de l'image};
\node[above=2pt of a,
        rectangle,
        draw=darkblue,
        fill=darkblue,
        minimum height=2cm,
        minimum width=13cm,
        text=white,
        inner sep=1pt]
        (titre){\large{La photographie numérique}};
\node[cont] {\bfseries Métadonnées EXIF};
\node[cont](b) {\bfseries Step3};
\node[right=2pt of titre,
        rectangle,
        draw=darkblue,
        fill=darkblue,thick,
        rounded corners,
        minimum height=3cm,
        text width=5cm,
        text=white]
        (competences){Identifier les étapes de la construction de l'image finale};

\end{tikzpicture}
\end{document}

Final solution. Thanks to JS Bibra and his use of anchor

\documentclass[tikz,border=2pt]{standalone}
\usetikzlibrary{chains, positioning, shapes.symbols}
\usepackage{xcolor}
\definecolor{darkblue}{RGB}{9,72,90}
\definecolor{lightblue}{RGB}{124,184,201}
\begin{document}
\begin{tikzpicture}[
    node distance = 2pt,
    start chain = going right,
    start/.style = {signal,
                    draw=darkblue,
                    very thick,
                    fill=lightblue,
                    text width=2cm,
                    minimum height=1cm,
                    font=\scriptsize,
                    text=white,
                    signal pointer angle=120, on chain},
    cont/.style = {start,
                    signal from=west}
    ]
\node[start,](a) {\bfseries Construction de l'image};
\node[above=0.6cm of a.west,
        anchor=south west,
        rectangle,
        rounded corners,
        draw=darkblue,
        fill=darkblue,
        minimum height=2cm,
        minimum width=13cm,
        text=white,
        inner sep=1pt]
        (boitetitre){};
\node [right=1em of boitetitre.west,
    anchor=south west,
    text=white]
    (titre) {\Large{La photographie numérique}};
\node [left=1em of boitetitre.south east,
    anchor=south east,
    text=white]
    (titre) {\Large{Troisième}};
\node [right=1em of boitetitre.west,
    anchor=south west,
    text=white]
    (titre) {\Large{La photographie numérique}};
\node[cont] {\bfseries Métadonnées EXIF};
\node[cont](b) {\bfseries Step3};
\node[right=5.4cm of boitetitre.north east, anchor=north east,
        rectangle,
        draw=darkblue,
        fill=darkblue,thick,
        rounded corners,
        minimum height=3cm,
        text width=5cm,
        text=white]
        (competences){Identifier les étapes de la construction de l'image finale};

\end{tikzpicture}
\end{document}

This should be simple with the TikZ nodes and its various shapes. There are many such examples in the documentation. — Sigur, Oct 05 '21 at 20:56
You can take a look to the smartdiagram package (sequence diagram) or, directly related to the question, there's an old question (that incidentally is the origin of the sequence diagram): Drawing a chevron process in LaTeX — Claudio Fiandrino, Oct 06 '21 at 08:54

score 3 · Accepted Answer · answered Oct 06 '21 at 14:14

\documentclass[tikz,border=2pt]{standalone}
\usetikzlibrary{chains, positioning, shapes.symbols}
\usepackage{xcolor}
\definecolor{darkblue}{RGB}{9,72,90}
\definecolor{lightblue}{RGB}{124,184,201}
\begin{document}
\begin{tikzpicture}[
    node distance = 2pt,
    start chain = going right,
    start/.style = {signal,
                    draw=darkblue,
                    fill=lightblue,
                    text width=2cm,
                    minimum height=1cm,
                    font=\scriptsize,
                    text=white,
                    signal pointer angle=120, on chain},
    cont/.style = {start,
                    signal from=west}
    ]
\node[start,](a) {\bfseries Construction de l'image};
\node[above=0.6cm of a.west, anchor=south west,
        rectangle,
        draw=darkblue,
        fill=darkblue,
        minimum height=2cm,
        minimum width=13cm,
        text=white,
        inner sep=1pt]
        (titre){\large{La photographie numérique}};
\node[cont] {\bfseries Métadonnées EXIF};
\node[cont](b) {\bfseries Step3};
\node[right=5.4cm of titre.north east, anchor=north east,
        rectangle,
        draw=darkblue,
        fill=darkblue,thick,
        rounded corners,
        minimum height=3cm,
        text width=5cm,
        text=white]
        (competences){Identifier les étapes de la construction de l'image finale};

\end{tikzpicture}
\end{document}
