I want to add A, B, C... on the top and one, two, three on the left

I want to add A, B, C... on the top and one, two, three on the left follow is my code:

\begin{figure*}[ht]
\centering
\subfloat[]{\includegraphics[width=0.22\columnwidth]{fig5a1.png}
    \label{fig5a1}}
\subfloat[]{\includegraphics[width=0.22\columnwidth]{fig5b1.png}
    \label{fig5b1}}
\subfloat[]{\includegraphics[width=0.22\columnwidth]{fig5c1.png}
    \label{fig5c1}}
\subfloat[]{\includegraphics[width=0.22\columnwidth]{fig5d1.png}
    \label{fig5d1}} \\
\subfloat[]{\includegraphics[width=0.22\columnwidth]{fig5a2.png}
    \label{fig5a2}}
\subfloat[]{\includegraphics[width=0.22\columnwidth]{fig5b2.png}
    \label{fig5b2}}
\subfloat[]{\includegraphics[width=0.22\columnwidth]{fig5c2.png}
    \label{fig5c2}}
\subfloat[]{\includegraphics[width=0.22\columnwidth]{fig5d2.png}
    \label{fig5d2}}
           \caption{picture}
\label{fig5}

\end{figure*}

small pink pig
  • 15

1 Answers1

0

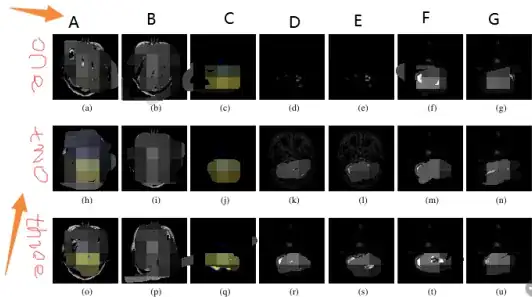

enter image description here

\documentclass[twocolun]{article}

\usepackage{adjustbox}  % it load graphicx package too
\usepackage[skip=0.5ex, belowskip=1ex]{subcaption}


\usepackage{rotating, tabularx}
\newcolumntype{C}{>{\centering\arraybackslash}X}


\begin{document}
    \begin{figure}[ht]
    \centering
\adjustboxset{width=\linewidth,valign=c, margin=0pt 3pt 0pt 3pt}
\begin{tabularx}{\linewidth}{@{} c CCCC @{}}
    & A & B & C & D     \
\rotatebox{90}{\qquad   one}
    & \subfloat[\label{fig5a1}]{\adjincludegraphics{example-image-duck}}
        & \subfloat[\label{fig5b1}]{\adjincludegraphics{example-image-duck}}
            & \subfloat[\label{fig5c1}]{\adjincludegraphics{example-image-duck}}
                & \subfloat[\label{fig5d1}]{\adjincludegraphics{example-image-duck}} \

\rotatebox{90}{\qquad    two}
    & \subfloat[\label{fig5a2}]{\adjincludegraphics{example-image-duck}}
        & \subfloat[\label{fig5b2}]{\adjincludegraphics{example-image-duck}}
            & \subfloat[\label{fig5c2}]{\adjincludegraphics{example-image-duck}}
                & \subfloat[\label{fig5d2}]{\adjincludegraphics{example-image-duck}} \
\end{tabularx}
\caption{picture}
\label{fig5}
    \end{figure}
\end{document}
Zarko
  • 296,517
