subfigure sets figure counter wrong

Question

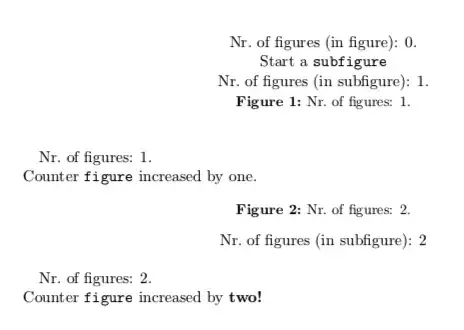

If I go into a figure environment, set the \caption first and then the subfigures, the figure-counter is increased by two. If i put the subfigures first and the \caption below, it is correctly increased by one.

It seems like \caption checks if the figure-counter was increased in the own environment, for subfigure it seems to not be that way.

As a workaround I found\addtocounter{figure}{-1}.

Is there an option to fix it with an optional argument?

\documentclass{scrartcl}
\usepackage{float}
\floatplacement{figure}{htbp}
\usepackage[labelfont=bf, font=small]{caption}
\usepackage{subcaption}
\begin{document}
\begin{figure}
    \centering
    Nr.\ of figures (in figure): \arabic{figure}. \
    Start a \texttt{subfigure}
    \begin{subfigure}{\textwidth}
      \centering
      Nr.\ of figures (in subfigure): \arabic{figure}.
    \end{subfigure}
    \caption{Nr.\ of figures: \arabic{figure}.}
  \end{figure}
Nr.\ of figures: \arabic{figure}. \
  Counter \texttt{figure} increased by one.
\begin{figure}
    \centering
    \caption{Nr.\ of figures: \arabic{figure}.}
    \begin{subfigure}{\textwidth}
      \centering
      Nr.\ of figures (in subfigure): \arabic{figure}
    \end{subfigure}
  \end{figure}
Nr.\ of figures: \arabic{figure}. \
  Counter \texttt{figure} increased by \textbf{two!}
\end{document}

See https://tex.stackexchange.com/a/338685/113546 Use \documentclass[captions=figureheading]{scrartcl} — Pieter van Oostrum, Mar 25 '21 at 11:17
Thanks very much. That solved it, had it for the tables, but not for the figures, smh. If you can add it as an answer, i can solve the question. — Konrad Duffelmann, Mar 25 '21 at 12:11

score 0 · Accepted Answer · answered Mar 25 '21 at 13:09

This is a problem about the way scrartcl deals with captions. See tex.stackexchange.com/a/338685/113546. Use \documentclass[captions=figureheading]{scrartcl}.

\documentclass[captions=figureheading]{scrartcl}
\usepackage{float}
\floatplacement{figure}{htbp}
\usepackage[labelfont=bf, font=small]{caption}
\usepackage{subcaption}
\begin{document}
\begin{figure}
    \centering
    Nr.\ of figures (in figure): \arabic{figure}. \
    Start a \texttt{subfigure}
    \begin{subfigure}{\textwidth}
      \centering
      Nr.\ of figures (in subfigure): \arabic{figure}.
    \end{subfigure}
    \caption{Nr.\ of figures: \arabic{figure}.}
  \end{figure}
Nr.\ of figures: \arabic{figure}. \
  Counter \texttt{figure} increased by one.
\begin{figure}
    \centering
    \caption{Nr.\ of figures: \arabic{figure}.}
    \begin{subfigure}{\textwidth}
      \centering
      Nr.\ of figures (in subfigure): \arabic{figure}
    \end{subfigure}
  \end{figure}
Nr.\ of figures: \arabic{figure}. \
  Counter \texttt{figure} increased by \textbf{two!}
\end{document}
