I am translating one dyploma from english, so i find strange symbolsy

Help me find code for this, please

taciturno
  • 265
  • 3
    Look here first: https://tex.stackexchange.com/questions/14/how-to-look-up-a-symbol-or-identify-a-math-symbol-or-character – Davislor Jun 02 '19 at 17:17
  • @Davislor, thanks a lot, service was useless, but i find vertical part of this symbol in symbol list - it is a \multimapdotbothvert from package "pxfonts". But know i cannot understand sybmols that looks like composition symbol in math(horizontal symbols) – taciturno Jun 02 '19 at 17:35

2 Answers2

10

This seems to do it. Use a better name than \strangesymbol (somebody might suggest \zzz, but I don't recommend it).

\documentclass{article}
\usepackage{amsmath,graphicx}

\makeatletter
\newcommand{\strangesymbol}{%
  \mathrel{\circ}%
  \mathrel{\mathpalette\strange@symbol\relax}%
  \mathrel{\circ}%
}

\newcommand{\strange@symbol}[2]{%
  \vcenter{%
    \m@th\offinterlineskip
    \sbox\z@{\scalebox{0.7}{$#1\bullet$}}%
    \ialign{\hfil##\hfil\cr
      \usebox\z@\cr
      \noalign{\kern-0.3\ht\z@}%
      $#1|$\cr
      \noalign{\kern-0.3\ht\z@}%
      \usebox\z@\cr
  }}%
}
\makeatother

\begin{document}

\[

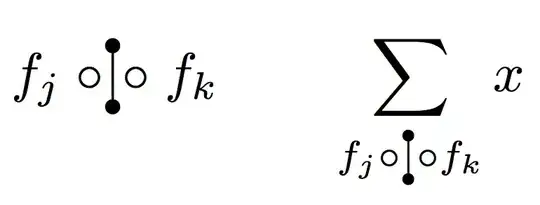

f_j\strangesymbol f_k \qquad \sum_{f_j\strangesymbol f_k} x
\]

\end{document}

enter image description here

egreg
  • 1,121,712
6

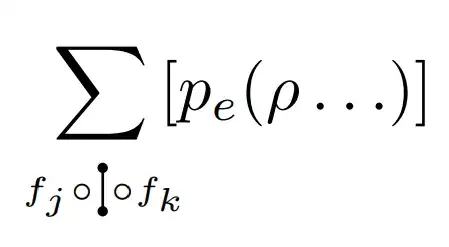

It took me more than an hour to invent this code because I had to find the right position for the symbols. I hope he's answered your question. In truth there is specific symbol \multimapdotbothvert from boisik package but if I put this in, I'm gonna lose the mathematical fonts of computer modern. I hope that I have answered your question.

enter image description here

\documentclass{article}
\usepackage{amsmath,amssymb,graphicx}
\newcommand\tdots{\mathrel{\boldsymbol{\cdot}\mkern-4mu{-}\mkern-4mu\boldsymbol{\cdot}}}
\begin{document}
\[
\sum_{\overset{\mkern-20mu f_j\circ \,\,\circ f_k}{}\mkern-35mu{\rotatebox{90}
{$\tdots$}}}{[p_e(\rho \ldots)]}
\]
\end{document}
Sebastiano
  • 54,118
  • 1
    Yes, i find this command also, but didnot have time to post it here) Thanks anyway. And one more: instead of package \boisik it allows to use \pxfonts. And little circles around this vertical symbol are \circ – taciturno Jun 02 '19 at 21:49
