positioning and alignment of table content

Question

In fact, I want to arrange this table by doing this:

• I want the numbers from 1 to 6 to be on the middle and not on the first line.
• I want the expressions to be aligned

Here is the code that I used:

\begin{table}
\centering
\caption{Expressions des instants de commutation pour chaque secteur}
\begin{tabular}{@{} c c  @{}}
\toprule
Sector number & Expressions  \\
\midrule
1 & $T_a$=$\sqrt{3}$.$T_s$.$\frac{V_r}{U_{dc}}$.sin($\frac{\pi}
{3}$-$\gamma$)\\
& $T_b$=$\sqrt{3}$.$T_s$.$\frac{V_r}{U_{dc}}$.sin($\gamma$) \\ \\
2 & $T_a$=$\sqrt{3}$.$T_s$.$\frac{V_r}{U_{dc}}$.sin($\frac{2\pi}
{3}$-$\gamma$)\\
& $T_b$=$\sqrt{3}$.$T_s$.$\frac{V_r}{U_{dc}}$.sin($\gamma$-$\frac{\pi}{3}$)
\\ \\
3 & $T_a$=$\sqrt{3}$.$T_s$.$\frac{V_r}{U_{dc}}$.sin($\pi$-$\gamma$)\\
& $T_b$=$\sqrt{3}$.$T_s$.$\frac{V_r}{U_{dc}}$.sin($\gamma$-$\frac{2\pi}{3}$)
 \\ \\
  4 & $T_a$=$\sqrt{3}$.$T_s$.$\frac{V_r}{U_{dc}}$.sin($\frac{4\pi}
  {3}$-$\gamma$)\\
   & $T_b$=$\sqrt{3}$.$T_s$.$\frac{V_r}{U_{dc}}$.sin($\gamma$-$\pi$) \\ \\
   5 & $T_a$=$\sqrt{3}$.$T_s$.$\frac{V_r}{U_{dc}}$.sin($\frac{5\pi}
  {3}$-$\gamma$)\\
   & $T_b$=$\sqrt{3}$.$T_s$.$\frac{V_r}{U_{dc}}$.sin($\gamma$-$\frac{4\pi}
   {3}$)
   \\ \\
   6 & $T_a$=$\sqrt{3}$.$T_s$.$\frac{V_r}{U_{dc}}$.sin(2$\pi$-$\gamma$)\\
   & $T_b$=$\sqrt{3}$.$T_s$.$\frac{V_r}{U_{dc}}$.sin($\gamma$-$\frac{5\pi}
   {3}$)
   \\ \\
   \bottomrule
   \end{tabular}
   \end{table}

Answer 1

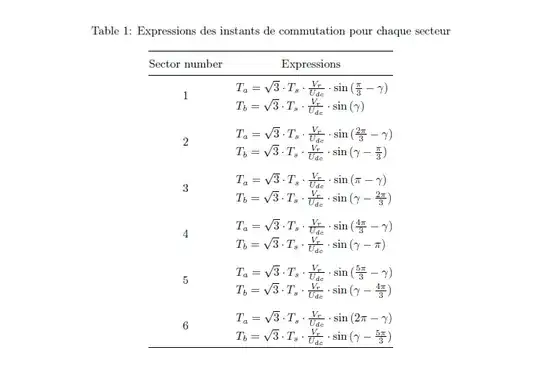

To put the numbers from 1 to 6 in the middle: use \multirow; to align the expression use l instead of c as column type.

But what are all those $ in your expressions? You need only one $ at the beginning and one at the end, you could also avoid to write them in every row with this column type specification: >{$}l<{$}.

I think you need to read some beginner's guide, please see here: What are good learning resources for a LaTeX beginner?.

Moreover, use \cdot for . and \sin for sin, and I think there could be also other possible improvements...

\documentclass{article}
\usepackage{amsmath}
\usepackage{array}
\renewcommand{\arraystretch}{1.3}
\usepackage{booktabs}
\usepackage{multirow}
\usepackage{caption}
\begin{document}
    \begin{table}
        \centering
        \caption{Expressions des instants de commutation pour chaque secteur}
        \begin{tabular}{@{} c >{$}l<{$}  @{}}
            \toprule
            Sector number & \multicolumn{1}{c}{Expressions}  \\
            \midrule
            \multirow{2}{*}{1} & T_a=\sqrt{3}\cdot T_s\cdot \frac{V_r}{U_{dc}}\cdot \sin{(\frac{\pi}
                {3}-\gamma)}\\
            & T_b=\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(\gamma)} \\[2ex]
            \multirow{2}{*}{2} & T_a=\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(\frac{2\pi}
                {3}-\gamma)}\\
            & T_b=\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(\gamma-\frac{\pi}{3})}
            \\[2ex]
            \multirow{2}{*}{3} & T_a=\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(\pi-\gamma)}\\
            & T_b=\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(\gamma-\frac{2\pi}{3})}
            \\[2ex]
            \multirow{2}{*}{4} & T_a=\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(\frac{4\pi}
                {3}-\gamma)}\\
            & T_b=\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(\gamma-\pi)} \\[2ex]
            \multirow{2}{*}{5} & T_a=\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(\frac{5\pi}
                {3}-\gamma)}\\
            & T_b=\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(\gamma-\frac{4\pi}
                {3})}
            \\[2ex]
            \multirow{2}{*}{6} & T_a=\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(2\pi-\gamma)}\\
            & T_b=\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(\gamma-\frac{5\pi}
                {3})}
            \\
            \bottomrule
        \end{tabular}
    \end{table}
\end{document}

Answer 2

First off, please take care on how you input math formulas: there are really many errors in

$T_a$=$\sqrt{3}$.$T_s$.$\frac{V_r}{U_{dc}}$.sin($\frac{\pi}{3}$-$\gamma$)

It should be a single formula, using \sin for the sine function; the low period never stands for multiplication in mathematics. Either use \cdot or, even better, nothing at all; however, a thin space is good between a “square root of 3” factor and the following term:

$T_a=\sqrt{3}\,T_s\frac{V_r}{U_{dc}}\sin(\frac{\pi}{3}-\gamma)$

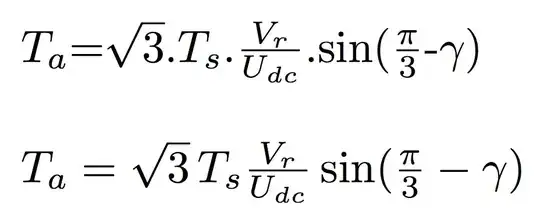

Compare the two outputs.

Now let's consider the table. There is no need to vertically center the sector numbers: a small space between two groups is sufficient; actually the table looks a bit odd with the centered numbers. Anyhow, if you really want it, use \multirow. Never use \\ for adding vertical space between rows: \addlinespace is what you want.

The expressions should be left aligned: they have slightly different widths and centering them would create a jagged column.

Next, a devious trick: since all formulas have a common factor, define a macro for it, which eases input and also allows for adding a phantom that will avoid clashes between the fractions (a \Big bar). This macro is only defined in the particular table environment.

\documentclass{article}
\usepackage{booktabs}

\begin{document}

\begin{table}
\centering
\caption{Expressions des instants de commutation pour chaque secteur}

\newcommand{\commonfactor}{%
  \vphantom{\Big|}%
  \sqrt{3}\,T_s\frac{V_r}{U_{dc}}%
}

\begin{tabular}{@{} c l  @{}}
\toprule
Sector & \multicolumn{1}{c}{Expressions des instants} \\
number & \multicolumn{1}{c}{de commutation} \\
\midrule
1 & $T_a=\commonfactor\sin(\frac{\pi}{3}-\gamma)$ \\
  & $T_b=\commonfactor\sin(\gamma)$ \\
\addlinespace
2 & $T_a=\commonfactor\sin(\frac{2\pi}{3}-\gamma)$ \\
  & $T_b=\commonfactor\sin(\gamma-\frac{\pi}{3})$ \\
\addlinespace
3 & $T_a=\commonfactor\sin(\pi-\gamma)$ \\
  & $T_b=\commonfactor\sin(\gamma-\frac{2\pi}{3})$ \\
\addlinespace
4 & $T_a=\commonfactor\sin(\frac{4\pi}{3}-\gamma)$ \\
  & $T_b=\commonfactor\sin(\gamma-\pi)$ \\
\addlinespace
5 & $T_a=\commonfactor\sin(\frac{5\pi}{3}-\gamma)$ \\
  & $T_b=\commonfactor\sin(\gamma-\frac{4\pi}{3})$ \\
\addlinespace
6 & $T_a=\commonfactor\sin(2\pi-\gamma)$\\
  & $T_b=\commonfactor\sin(\gamma-\frac{5\pi}{3})$ \\
\bottomrule
\end{tabular}

\end{table}

\end{document}

If you don't have space constraints (two column typesetting), you can do even better:

\documentclass{article}
\usepackage{booktabs}

\begin{document}

\begin{table}
\centering
\caption{Expressions des instants de commutation pour chaque secteur}

\newcommand{\commonfactor}{%
%  \vphantom{\Big|}%
  \sqrt{3}\,T_s\frac{V_r}{U_{dc}}%
}

\begin{tabular}{@{} c l l @{}}
\toprule
Sector & \multicolumn{2}{c}{Expressions des instants de commutation} \\
\midrule
1 & $T_a=\commonfactor\sin(\frac{\pi}{3}-\gamma)$
  & $T_b=\commonfactor\sin(\gamma)$ \\
\addlinespace
2 & $T_a=\commonfactor\sin(\frac{2\pi}{3}-\gamma)$
  & $T_b=\commonfactor\sin(\gamma-\frac{\pi}{3})$ \\
\addlinespace
3 & $T_a=\commonfactor\sin(\pi-\gamma)$
  & $T_b=\commonfactor\sin(\gamma-\frac{2\pi}{3})$ \\
\addlinespace
4 & $T_a=\commonfactor\sin(\frac{4\pi}{3}-\gamma)$
  & $T_b=\commonfactor\sin(\gamma-\pi)$ \\
\addlinespace
5 & $T_a=\commonfactor\sin(\frac{5\pi}{3}-\gamma)$
  & $T_b=\commonfactor\sin(\gamma-\frac{4\pi}{3})$ \\
\addlinespace
6 & $T_a=\commonfactor\sin(2\pi-\gamma)$
  & $T_b=\commonfactor\sin(\gamma-\frac{5\pi}{3})$ \\
\bottomrule
\end{tabular}

\end{table}

\end{document}

As you see, I commented out the \vphantom{\Big|} in the definition, because here it's not needed.

Answer 3

Here is my try. The first table is quite similar to the one from @CarLaTeX (but was created independently ;)). I use a little more complex table to assure horizontal alignment of the equations.

The second table is my recommendation though. This is much more compact and probably better to remember.

\documentclass{article}
\usepackage{amsmath}
\usepackage{array}
\usepackage{booktabs}
\usepackage{multirow}
\usepackage{calc}


\begin{document}

\begin{table}
\renewcommand{\arraystretch}{1.3}
\centering
\caption{Expressions des instants de commutation pour chaque secteur}
\begin{tabular}{@{} c >{$}r<{$}@{$\;$}>{$}l<{$}  @{}}
\toprule
Sector number & \multicolumn{2}{c}{Expressions}  \\
\midrule
\multirow{2}{*}{1}
  & T_a=&\sqrt{3} \cdot T_s \cdot \frac{V_r}{U_{dc}} \cdot \sin(\frac{\pi}{3}-\gamma)\\
  & T_b=&\sqrt{3} \cdot T_s \cdot \frac{V_r}{U_{dc}} \cdot \sin(\gamma)
\\[2ex]
\multirow{2}{*}{2}
  & T_a=&\sqrt{3} \cdot T_s \cdot \frac{V_r}{U_{dc}} \cdot \sin(\frac{2\pi}{3}-\gamma)\\
  & T_b=&\sqrt{3} \cdot T_s \cdot \frac{V_r}{U_{dc}} \cdot \sin(\gamma-\frac{\pi}{3})
\\[2ex]
\multirow{2}{*}{3}
  & T_a=&\sqrt{3} \cdot T_s \cdot \frac{V_r}{U_{dc}} \cdot \sin(\pi-\gamma)\\
  & T_b=&\sqrt{3} \cdot T_s \cdot \frac{V_r}{U_{dc}} \cdot \sin(\gamma-\frac{2\pi}{3})
\\[2ex]
\multirow{2}{*}{4}
  & T_a=&\sqrt{3} \cdot T_s \cdot \frac{V_r}{U_{dc}} \cdot \sin(\frac{4\pi}{3}-\gamma)\\
  & T_b=&\sqrt{3} \cdot T_s \cdot \frac{V_r}{U_{dc}} \cdot \sin(\gamma-\pi)
\\[2ex]
\multirow{2}{*}{5}
  & T_a=&\sqrt{3} \cdot T_s \cdot \frac{V_r}{U_{dc}} \cdot \sin(\frac{5\pi}{3}-\gamma)\\
  & T_b=&\sqrt{3} \cdot T_s \cdot \frac{V_r}{U_{dc}} \cdot \sin(\gamma-\frac{4\pi}{3})
\\[2ex]
\multirow{2}{*}{6}
  & T_a=&\sqrt{3} \cdot T_s \cdot \frac{V_r}{U_{dc}} \cdot \sin(2\pi-\gamma)\\
  & T_b=&\sqrt{3} \cdot T_s \cdot \frac{V_r}{U_{dc}} \cdot \sin(\gamma-\frac{5\pi}{3})
\\[2ex]
\bottomrule
\end{tabular}
\end{table}


\begin{table}
\renewcommand{\arraystretch}{1.3}
\centering
\caption{Expressions des instants de commutation pour chaque secteur}
\parbox{\widthof{$T_a = c \cdot \sin\alpha$,}}{%
  \setlength{\abovedisplayskip}{0pt}
  \setlength{\belowdisplayskip}{1ex}
  \begin{align*}
    T_a &= c \cdot \sin\alpha\\
    T_b &= c \cdot \sin\beta
  \end{align*}}\quad
with $c=\sqrt{3} \cdot T_s \cdot \frac{V_r}{U_{dc}}$


\begin{tabular}{@{} c >{$}c<{$} @{\qquad} >{$}c<{$}  @{}}
\toprule
Sector number & \alpha & \beta \\
\midrule
1 & \frac{\pi}{3}-\gamma  & \gamma \\
2 & \frac{2\pi}{3}-\gamma & \gamma-\frac{\pi}{3} \\
3 & \pi-\gamma            & \gamma-\frac{2\pi}{3} \\
4 & \frac{4\pi}{3}-\gamma & \gamma-\pi \\
5 & \frac{5\pi}{3}-\gamma & \gamma-\frac{4\pi}{3} \\
6 & 2\pi-\gamma           & \gamma-\frac{5\pi}{3} \\
\bottomrule
\end{tabular}
\end{table}

\end{document}

Answer 4

Another solution without multirow, but with a series of aligned environments in the second column, and a smaller spacing between groups of rows:

\documentclass[french]{article}
\usepackage[utf8]{inputenc}
\usepackage[T1]{fontenc}
\usepackage{babel}
\usepackage{amsmath}
\usepackage{array}
\renewcommand{\arraystretch}{1.3}
\usepackage{booktabs}
\usepackage{caption}

\begin{document}

\begin{table}
\centering
\setlength{\defaultaddspace}{1em}
\caption{Expressions des instants de commutation pour chaque secteur}
\begin{tabular}{@{}c>{$}l<{$} @{}}
\toprule
Sector number & \multicolumn{1}{c}{Expressions} \\
\midrule
1 & \begin{aligned} T_a & =\sqrt{3}\cdot T_s\cdot \frac{V_r}{U_{dc}}\cdot \sin{(\frac{\pi}
{3}-\gamma)}\\
 T_b & =\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(\gamma)}
\end{aligned} \\
\addlinespace[2ex]
 {2} & \begin{aligned} T_a & =\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(\frac{2\pi}
{3}-\gamma)}\\
 T_b & =\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(\gamma-\frac{\pi}{3})}
\end{aligned} \\
\addlinespace[1em]
3 & \begin{aligned} T_a & =\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(\pi-\gamma)}\\
 T_b & =\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(\gamma-\frac{2\pi}{3})}
\end{aligned} \\
\addlinespace
4 & \begin{aligned} T_a & =\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(\frac{4\pi}
 {3}-\gamma)}\\
  T_b & =\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(\gamma-\pi)}
\end{aligned} \\
\addlinespace
5 & \begin{aligned} T_a & =\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(\frac{5\pi}
 {3}-\gamma)}\\
 T_b & =\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(\gamma-\frac{4\pi}
 {3})}
\end{aligned} \\
\addlinespace
 6 & \begin{aligned} T_a & =\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(2\pi-\gamma)}\\
  T_b & =\sqrt{3}\cdot T_s\cdot\frac{V_r}{U_{dc}}\cdot\sin{(\gamma-\frac{5\pi}
 {3})}
\end{aligned} \\
   \bottomrule
   \end{tabular}
   \end{table}

\end{document}
