3

I'm using the chngcntr package to prevent the figure numbering from restarting, in my scrreprt. Take a look at the following code:

\usepackage{chngcntr}
\counterwithout{figure}{chapter}
\counterwithout{table}{chapter}
\counterwithout{footnote}{chapter}

Although the numbering is not interrupted, at times, I get a little vertical space in the Table of Figures between the references, which again plays the role of a divisor between figures coming from different chapters. Is there a way to get rid of it?

In my .lof file for the Table of Figures, those lines happen to be the cause of this vertical space:

\addvspace {10\p@ }
\defcounter {refsection}{0}\relax
\addvspace {10\p@ }

EDIT: A sample code to illustrate what I mean:

\documentclass[a4paper,fontsize=11pt,oneside,parskip=half]{scrreprt}

\usepackage[demo]{graphicx}

\usepackage{scrhack}

\usepackage{chngcntr}
\counterwithout{figure}{chapter}
\counterwithout{table}{chapter}
\counterwithout{footnote}{chapter}

\begin{document}

\listoffigures


\clearpage

\chapter{Chapter}

\begin{figure}[htb]
\includegraphics{image}
\caption{First Figure}
\label{fig1}
\end{figure}
\begin{figure}[htb]
\includegraphics{image}
\caption{First Figure}
\label{fig2}
\end{figure}
\chapter{Chapter}
\begin{figure}[htb]
\includegraphics{image}
\caption{First Figure}
\label{fig3}
\end{figure}
\begin{figure}[htb]
\includegraphics{image}
\caption{First Figure}
\label{fig4}
\end{figure}

\chapter{Chapter}
\begin{figure}[htb]
\includegraphics{image}
\caption{First Figure}
\label{fig5}
\end{figure}
\begin{figure}[htb]
\includegraphics{image}
\caption{First Figure}
\label{fig6}
\end{figure}

\end{document}

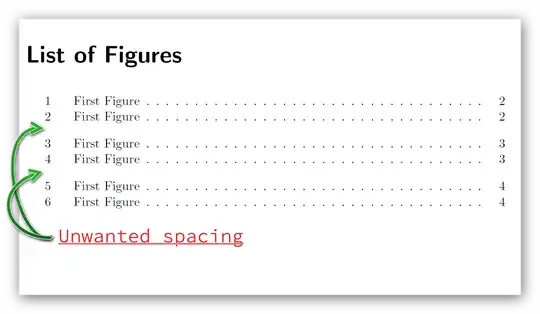

enter image description here

Johannes_B
  • 24,235
  • 10
  • 93
  • 248
ax1mx2
  • 269

1 Answers1

8

Well, really no need to go into source code surfing here.

\KOMAoption{chapteratlists}{0pt}

will set the chaptergap to zero point. All lists controlled by package tocbasic are influenced.

Alternatively, you could use \KOMAoption{listof}{nochaptergap}.
