[Note: Heavily edited for clarification]

My Zoom H1N can record stereo input from a 3.5mm input. I have two lav mics with 3.5mm ends. I want one mic to record into the left channel and the other to record into the right channel on my zoom. What kind of adapter/splitter do I need in order to do this?

There is a post here with an adapter I think I need - but I don't know what it's called. It combines two mono 3.5mm inputs into one singular 3.5mm jack.

Thanks for the help!

Mike Chase
  • 23
  • 5
  • The linked question is 2 mono TR jack sockets to a stereo TRS plug. Is that not what you want? You can't send 2 TRS to 1 TRS without combining. In case you're struggling on terminology T=tip R=ring & S=sleeve, so plugs can go from TS right up to TRRRS, depending on how many channels they can carry. – Tetsujin May 13 '19 at 16:52
  • Thank you for that clarification - I thought TRS was the same thing as any 3.5mm jack and it's not. I need two 3.5mm jacks to go into one single 3.5mm jack, but I need each Mono jack to be recorded separately into the Zoom H1n. Hope that make sense. – Mike Chase May 13 '19 at 18:16

3 Answers3

3

I thought TRS was the same thing as any 3.5mm jack and it's not.

TRS is one of the possible configurations for a 3.5mm jack. TRS= Tip, Ring, Sleeve.

There are also TS (mono) and TRRS (stereo for headphones plus a microphone) 3.5 mm jacks.

I need two 3.5mm jacks to go into one single 3.5mm jack, but I need each Mono jack to be recorded separately into the Zoom H1n.

That's the standard configuration. You need a 'dual mono 3.5 mm jack to stereo 3.5 mm jack' adapter.

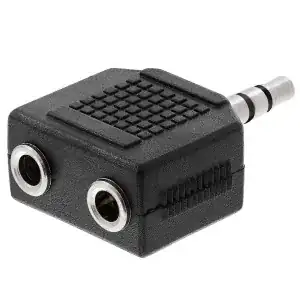

They're available as a short cable (as shown in the linked question), or as an adapter plug:

enter image description here

They're also available with a female stereo socket and male mono plugs, but that's not what you need. You also don't want a splitter, because that will have 2x stereo female jacks instead of mono.

Hobbes
  • 1,673
  • 1
  • 6
  • 12
1

It appears from a google search that this style of cable, one which splits the tip and ring to separate ends, is called a ”BREAKOUT” cable

Timinycricket
  • 1,070
  • 2
  • 7
  • 18
-1

3.5mm stereo jack to two mono left and right jack's are available on ebay. I was looking for the same thing and eventually found them and other variations on ebay
