Differences between OAuth Web Server Flow, User-Agent Flow, Username-Password Flow?

Question

The steps for Web Server flow, Username-Password Flow, and User-Agent Flow are different, so which occasions are these three used in and how do I select any particular method for different applications. My guess is standalone applications suit Web Server Flow, browser or mobile applications suit for User-Agent Flow and Username-Password flow is used for testing purposes. Is that correct? Any different views?

Answer 1

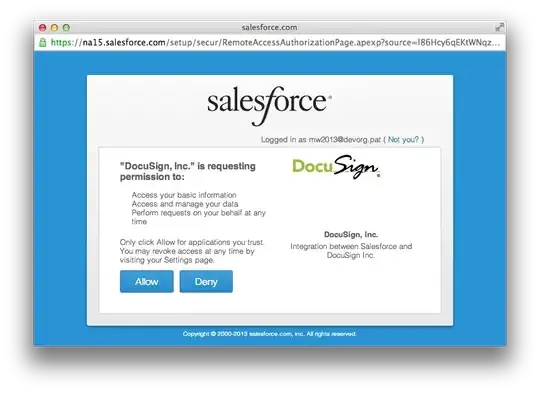

• Web server flow (In OAuth spec terms, Authorization Code Grant) tends to be used for web applications where server-side code needs to interact with Force.com APIs on the user's behalf, for example DocuSign:

Tokens are sent directly from the Authorization Server to the OAuth Client app, providing a high level of security.

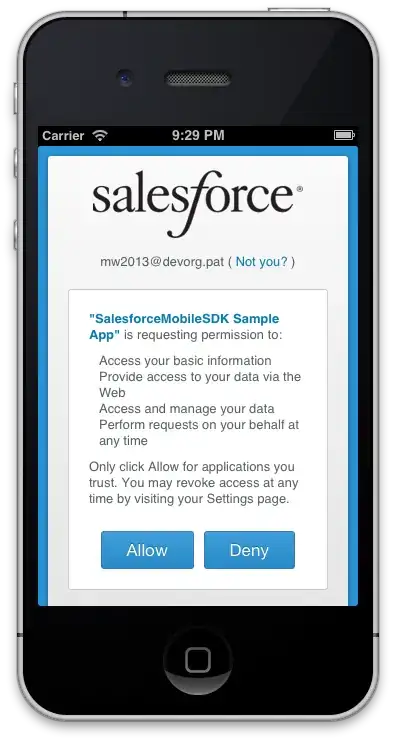

• User-Agent flow (Implicit Grant) tends to be used for mobile or desktop applications, for example Salesforce1 or Mobile SDK apps:

Tokens are returned to the Client app via a 'hash fragment' on a URL.

• Username-Password flow (Resource Owner Password Credentials Grant) can be used for testing, or for apps that operate non-interactively, such as legacy integrations, without a user to actively give authorization:

   $ curl -d 'grant_type=password&client_id=3MV_CLIENT_ID&client_secret=1234&username=user@example.com&password=password' \
   https://login.salesforce.com/services/oauth2/token
  {
     "id":"https://login.salesforce.com/id/ORG_ID/USER_ID",
     "issued_at":"1385271368428",
     "instance_url":"https://na15.salesforce.com",
     "signature":"Vcz4TlGBQJCwJzNtH3AHT/kUFLM4N/sFrJODX2ZNuyE=",
     "access_token":"00D_ACCESS_TOKEN"
   }


Username-password is generally discouraged and should be used only where no other alternative is available, due to the inherent problems with passwords.

• SAML Bearer Assertion Flow (SAML 2.0 Profile for OAuth 2.0 Client Authentication and Authorization Grants) is a better way for apps to obtain OAuth tokens without user interaction. The app obtains a signed SAML Assertion from an IAM system and exchanges it for the OAuth token.
• JWT Bearer Token Flow (JSON Web Token (JWT) Profile for OAuth 2.0 Client Authentication and Authorization Grants) is similar to SAML Bearer Assertion Flow, but uses a signed JSON Web Token rather than the SAML (XML) Assertion.
