We are trying to power this motor with this motor driver , using a 11.1V 2.2Ah lithium-ion polymer battery.

(We're in over our heads with this and really need the help)

We checked with the company (E-flite) and the motor is definitely DC -- we're a bit confused as to the purpose of three wires, and how we should connect them to the motor.

Any help would be appreciated.

Manishearth
  • 1,833
  • 2
  • 21
  • 28
Olly the idiot
  • 121
  • 1
  • 2
  • 3
    No need for the long thank you -- it adds to the noise (I've removed it). Your upvotes/acceptance tick are good enough thankyous for us -- and the existence of your question helps the site grow; thank you. And welcome to Robotics Stack Exchange :) – Manishearth Nov 19 '12 at 18:46

1 Answers1

2

The motor you have there is a Brushless DC motor. It's still technically a DC motor, but you won't be able to drive it by plugging it into a battery, or even into the driver you linked to. You need a driver specifically for brushless motors that can drive all three wires correctly.

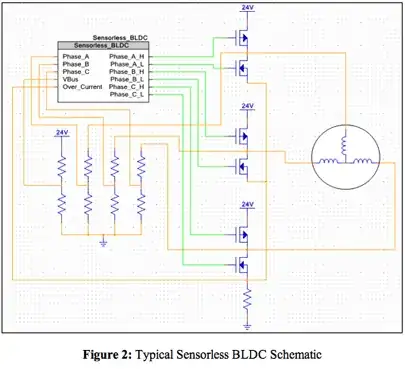

Brushless motor driver]

Something like this Electronic Speed Controller will drive it pretty well:

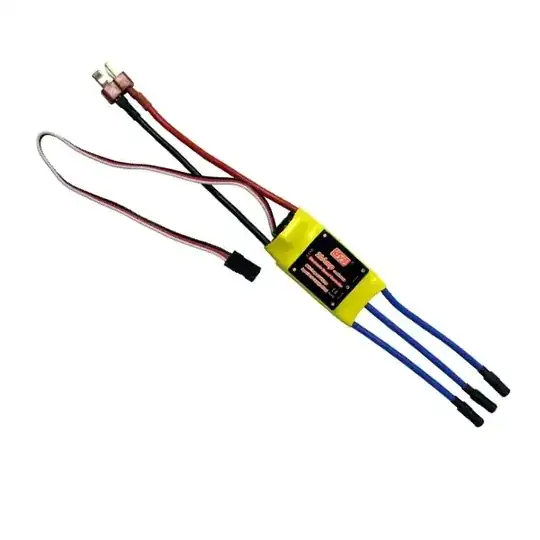

Electronic speed controller

You connect the motor to the 3 wires, and the power to the two wires. The little 3-wire connector normally goes to a Radio Control (RC) receiver, plugging into the servo socket. It accepts a PWM signal just like a normal servo.

Rocketmagnet
  • 6,457
  • 5
  • 29
  • 54
  • What if we really really really wanted to use this motor driver?

    Alternatively, what if we used the ESC, but wanted them controlled by a PI or Arduino or beagle board or something (Not RC). How would we do that?

     – Olly the idiot Nov 19 '12 at 21:07
  • You either need to change the motor to a Brushed DC motor. Or you need to change the motor driver to a Brushless motor driver. You could easily drive the ESC from an Arduino. It just needs a PWM signal. – Rocketmagnet Nov 19 '12 at 21:40
  • To re-itterate what rocketmagnet said, you listed a brushless motor (3wire) and a brushed speed controller (2wire) - they both need to be brushed or brushless. Both versions (brushed or brushless) need PWM signals to operate, which an arduino can easily provide. – Spiked3 Nov 20 '12 at 00:41
  • Okay thanks for pointing me in the right direction. For the benefit of myself and future readers, can someone explain the difference between Brushed & Brushless motors, why are there a different number of wires? – Olly the idiot Nov 21 '12 at 21:58
