__security_cookie for function pointers in Windows 10

Question

I'm curious about this __security_cookie that I keep seeing all over the msvcp140.dll from my Windows 10 x64 (insider build.)

Here's an example:

Note that the address for indirect function call (or qword_18009FBD0) is taken somewhere from the .data section:

Then it is XOR'ed with the __security_cookie:

I thought that __security_cookie is something that is used on the stack to guard against buffer-overflows. So they must be using some new security technique. Any idea what that is?

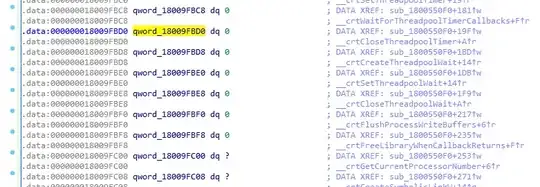

And a follow up question. I'm trying to statically analyze this binary code with IDA and this __security_cookie makes it very difficult to see what function is actually being called. For instance, here's how qword_18009FBD0 looks like:

Any idea how to make those function addresses more legible?

@Biswapriyo no, it's not the "GS cookie", even though it uses the same global variable name. Look at it, it has nothing to do with stack canaries, or "buffer overflows". — c00000fd, Sep 24 '19 at 19:41

Igor Skochinsky · Answer 1 · 2019-09-25T17:25:27.463

Look for the writes to the qword_18009FBD0 to see where it's initialized.

Apparently it's a part of an array called __encodedKERNEL32Functions where various pointers to kernel32 functions are stored after being XORed with __security_cookie. You can rename the pointer to the kernel32 function's name to better see what is happening:

  ;(from initialize_pointers)
  lea     rdx, aClosethreadpoo ; "CloseThreadpoolTimer"
  mov     rcx, rbx        ; hModule
  mov     cs:qword_180092498, rax
  call    cs:__imp_GetProcAddress
  xor     rax, cs:__security_cookie
  lea     rdx, aCreatethreadpo_0 ; "CreateThreadpoolWait"
  mov     rcx, rbx        ; hModule
  mov     cs:pCloseThreadpoolTimer_xored, rax ;<- variable renamed

__crtCloseThreadpoolTimer proc near
                sub     rsp, 28h
                mov     rax, cs:pCloseThreadpoolTimer_xored
                xor     rax, cs:__security_cookie
                jz      short loc_180036A8A
                call    cs:__guard_dispatch_icall_fptr ; calls CloseThreadpoolTimer()
loc_180036A8A:
                add     rsp, 28h
                retn
__crtCloseThreadpoolTimer endp

This mitigation is not actually new and was already used in VS2013 CRT although in a slightly different form. It is probably aimed at reducing the number of available API pointers in standard CRT DLLs to make exploitation harder.

Although __security_cookie is most commonly used for protecting data on the stack (GS and EH cookies), nothing prevents programmers from using it for other purposes as a simple source of entropy.

Yeah, I saw that too. There's a large function that repeatedly calls GetProcAddress on various system functions and populates that array. Unfortunately I can't load symbols to see its name. By the way, do you know the name of this security mitigation that they are using there? I haven't seen this before, although it uses the name of the stack canary cookie. — c00000fd, Sep 24 '19 at 19:56
