I've heard many good things about bias lighting, and am looking at options for it. I'm handy with a soldering iron so some assembly required is cool but I suspect other people may prefer something with minimal assembly requirements.

My criteria?

Well, its bias lighting.

Nice to have features?

Turns on and off when my PC does or has a switch

The ability to vary overall brightness, though it dosen't have to be dimmable.

I require reasonably even backlighting.

Would be super cool if it worked well with larger monitors.

Removable options would be shiny - I may regret what I chose, or need to dial in its position. Not essential though.

Since I work with dual monitors, options that scale to that would be super cool.

Journeyman Geek
  • 3,681
  • 1
  • 12
  • 27
  • I'd note as an aside, there's a few other options here. Antec makes a prebuilt kit that runs off 5V USB with less LEDs than my option. There's also a few coloured bias lighting kits around. I've not posted answers about them since I'd rather leave it to people who actually have the products. – Journeyman Geek Feb 10 '16 at 03:12

2 Answers2

2

After experimenting with a few experimental options - using a ledburg and a desklamp, I ended up building my own.

From my experiments, direct mounting would have been bad on my dell since the stand would have obscured the 'sweet spot' of lighting if I'd stuck it directly to the screen.

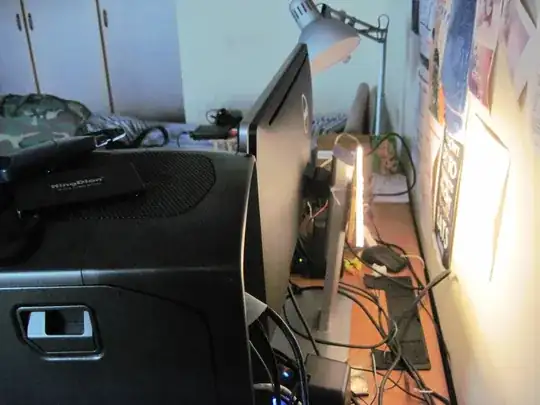

enter image description here

Its a DIY build so it may vary but I ended up getting a strip of 6500K white LEDs from my favourite chinese crapgadget vendor, chopping it up into ~27 LED strips, building a small wooden stand per monitor, and wireing it up to my power supply through a molex/floppy adapter. It turns on and off when my PC does (since it taps power from the PSU), is and is independent of the monitors.

They're ludiciously bright (which I love) though you could probably just use less LEDs. Since they're a strip, the backlight is fairly even outside the edges.

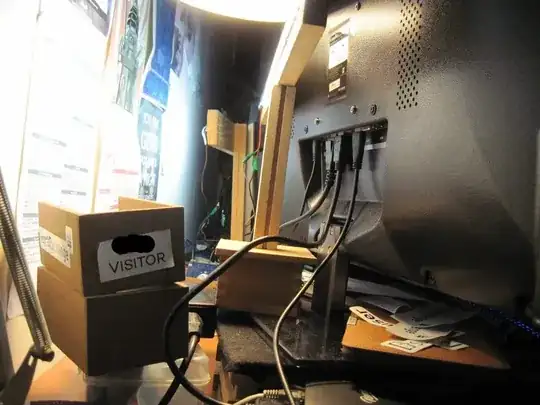

enter image description here

Mounting was an exercise in experimental interpretative carpentry, in my case. You could stick them directly, but I wanted the freedom to replace it in future if the cheap LEDs went bad, or I wanted to compare it side by side with a new option. This also ensures its roughly at the center of the back of each screen.

Journeyman Geek
  • 3,681
  • 1
  • 12
  • 27
1

One of my earlier experiments used a set of LEDBURG lights from ikea. Its somewhat easier to mount, since it comes in rigid, interconnectable strips, but I didn't like the warm white for this application. It was instrumental in setting up what I use now though.

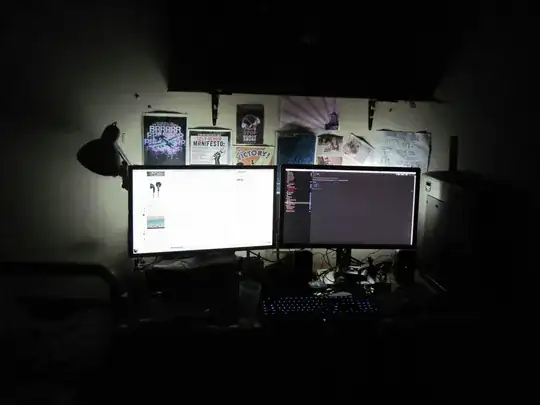

enter image description here

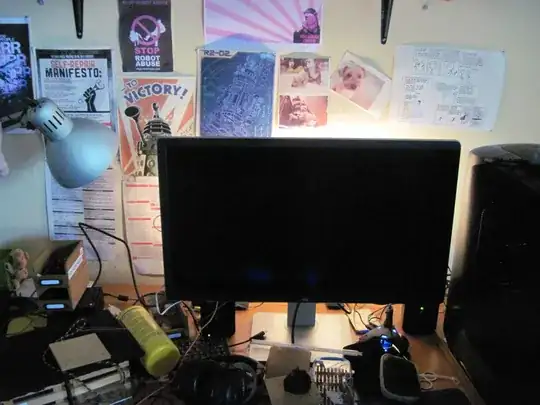

enter image description here
