How would you configure Brutile to use Macrostrat.org as a tile server

Question

I am wanting to create a active tile layer in a C#, WPF application that uses Mapsui and Brutile. Using Brutile, can geology map available MacroStrat.org be used as a map tile source?

Macrostrat.org - With over 225 maps from data providers around the world across every scale, Macrostrat is the world's largest homogenized geologic map database

Brutile - BruTile is a .NET Standard 1.1 library to access tile services like OpenStreetMap and Bing

Mapsui - Mapsui is a C# map component for apps. Supported platforms: Xamarin.Forms (including Android, iOS, MacOS, UWP and WPF)

Answer 1

Here is the solution I came up with using this Reddit forum which the author provided the proper url for Macrostrat.

Partial answer found at Reddit. - Giving credit where credit is due.

Macrostrat.org uses Open Street Map as a base, so I assumed the setup in Brutile in for Macrostrat could be modelled after the KnownTileSource for OpenStreet Map.

Steps:

1. Using GitHub, I created my own fork of Brutile.

2. Edited file: ..\BruTile/Predefined/KnownTileSources.cs

3. Added new value of Macrostrat to public enum KnownTileSource.

4. Added new method to public static class KnownTileSources

   private static readonly Attribution MacrostratAttribution = new Attribution( "© Macrostrat contributors", "https://macrostrat.org/#about");

5. Modified existing method: public static HttpTileSource Create(...)

6. Added the following case to the top of the switch statement:

   public static HttpTileSource Create(KnownTileSource source = KnownTileSource.OpenStreetMap, string apiKey = null, IPersistentCache<byte[]> persistentCache = null, Func<Uri, byte[]> tileFetcher = null, string userAgent = null) { switch (source) { case KnownTileSource.Macrostrat: return new HttpTileSource(new GlobalSphericalMercator(0, 18), "https://tiles.macrostrat.org/carto/{z}/{x}/{y}.png", new[] { "a", "b", "c" }, name: source.ToString(), persistentCache: persistentCache, tileFetcher: tileFetcher, attribution: MacrostratAttribution, userAgent: userAgent);

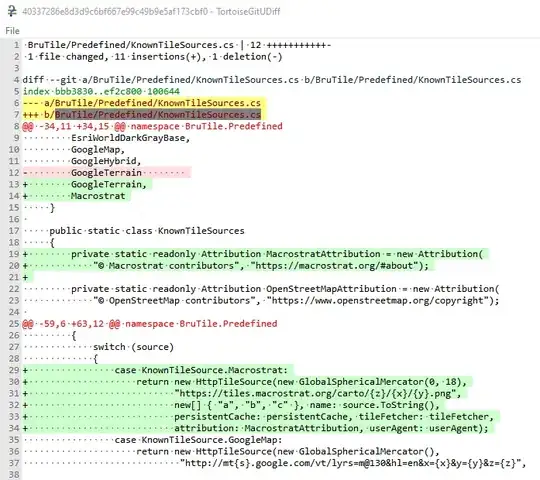

(Code unified diff using TortoiseGit)
