I have a Polyline feature class. For each feature in the Fc...I want the list of all the connecting lines(A table). For Example For Feature 17686 Connecting Id are : 17688 & 17684. For Reference :
enter image description here

Rpandia31
  • 141
  • 6
  • See these links for Select by Location: https://desktop.arcgis.com/en/arcmap/10.3/map/working-with-layers/using-select-by-location.htm and this link for exporting selected records in an attribute table: https://desktop.arcgis.com/en/arcmap/latest/manage-data/geodatabases/export-selected-records-from-a-table.htm – GBG Feb 09 '22 at 23:13
  • I have seen that it is not solving my purpose... – Rpandia31 Feb 09 '22 at 23:40

1 Answers1

5

Derive lines end points, delete spatially identical, name points and transfer their attributes to lines table:

enter image description here enter image description here

Export lines table to 2 identical stand-alone table in GDB, e.g. ABC and CBA and Make Query Table No1:

enter image description here

Repeat to create Query Table No2 and 3, using:

ABC.ton = BCA.fromn
and
ABC.ton = BCA.ton

You'll need to export all query tables and concatenate them. Table below shows all lines connected to line 612, compare it with 1st picture:

enter image description here

This hectic workflow can be replaced by tiny field calculator expression:

import collections
from collections import defaultdict
dF,dT=defaultdict(list),defaultdict(list)
tbl=arcpy.da.TableToNumPyArray("LINKS",("LINKNO" , "fromn" , "ton"))
for i,f,t in tbl:
 dF[f]+=[str(i)]; dF[t]+=[str(i)]
 dT[t]+=[str(i)]; dT[f]+=[str(i)]

def getConnected(i,f,t):
 bigList = set(dF[f]+dT[t])
 bigList.remove(str(i))
 return ','.join(list(bigList))
#-----
getConnected( !LINKNO!, !fromn! , !ton! )

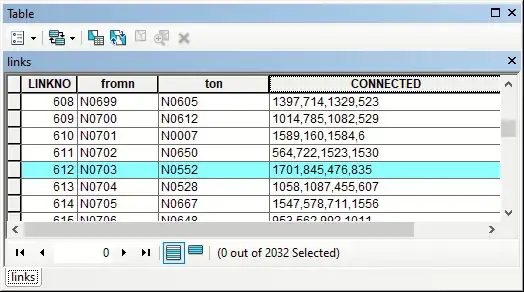

enter image description here

Use python, I think there is a need for one more query table if there are more than one line going out from FromNode:(
