I'm trying to use the grass algorithm v.net.connect via the processing menu using a test set of 3 point objects and a single line object. All 4 objects only have geometry and an ID field. With the parameters set to these two layers and the threshold still at 50.00 and the Network set to save to a temporary file, the algorithm appears to run but does not produce an output. The log file appears ok bar a line near the end saying "ERROR: option : exists. to overwrite, use the --overwite flag"

My question is how do I set this flag to enable the output? or is this a bug with 2.18.13 as i have used this algorithm in the past on 2.14.

K. Osborne
  • 113
  • 6

2 Answers2

1

I was having similar errors with v.net.connect not producing an output in QGIS 2.18 too, and what typically works for me is running Multipart to singlepart on both inputs (line and point layers), prior to running v.net.connect.

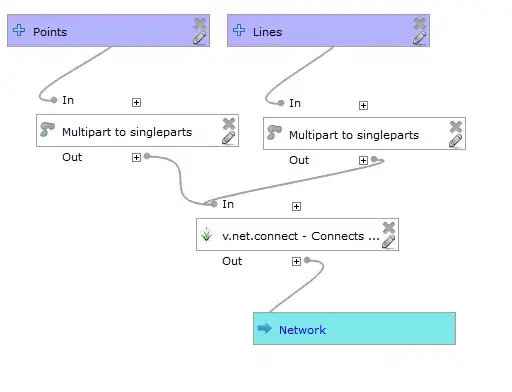

In the graphical modeler, it will look something like this:

enter image description here

You might also have to run v.net.clean on the multipart to singlepart output, but generally that should work.

15Step
  • 2,430
  • 1
  • 13
  • 28
  • Thanks for the reply. I tried this solution but still get the same result - no output with an Error indicating an overwrite flag needs to be set. I also tried cleaning the resultant data sets but again, got the same results. – K. Osborne Jan 09 '18 at 14:41
  • Perhaps try clearing the temp directory that QGIS uses? On Windows, that is: C:\Users<username>\AppData\Local\Temp – 15Step Jan 09 '18 at 14:56
0

Found a solution to the problem. I've updated my QGIS install to version 2.18.15 and the v.net.connect function now works.
