How to draw a shapefile over GeoTIFF geometry to a PNG

Question

How I can to draw using GDAL in python or c a polygon shapefile shape.shp with a GeoTIFF as background background.tiff file?

Both files are in the same projection.

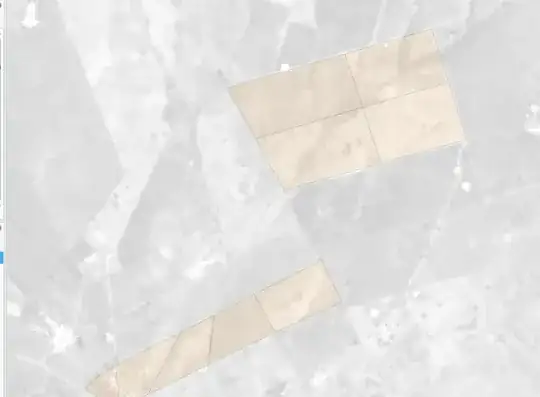

The result could be a PNG, JPEG or whatever. To clarify I'm going to put screen shoots of the done with QGIS. First one is the shapefile, second the GeoTIFF, and finally the union.

Add alpha to the gdal_rasterize command as in here http://gis.stackexchange.com/questions/176471/how-to-set-opacity-with-gdal-rasterize. There are other usable answers as well, search with "gdal_rasterize". — user30184, Mar 16 '17 at 19:48

score 0 · Answer 1 · edited Apr 13 '17 at 12:34

0

One method would be to rasterize the shapefile using gdal_rasterize, and then overlay it onto the other raster file.

A similar question exists and is available here: how to overlay shapefile and raster?

edited Apr 13 '17 at 12:34

Community

1

answered Mar 16 '17 at 19:48

Alec Bennett

161
9
