Using SVG file to fill polygon using QGIS- problem

Asked Jun 28 '16 at 09:11

Active Jun 28 '16 at 09:28

Viewed 551 times

I try to fulfill polygon with SVG file (which created with inkscape)

but when i load the file into QGIS by this way:

i get polygon layer with no symbology:

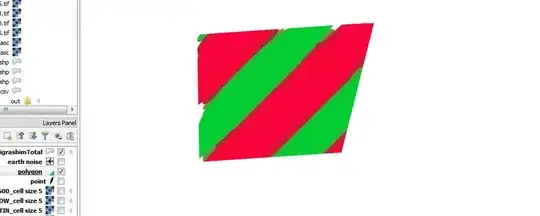

Now, i red Using SVG from Wikipedia to fill polygon? but didn't succeed to fill the polygon. When i use the option "RASTER IMAGE FILL" i get this unwanted result:

while in ArcGIS this exact symbology is very elegance:

edited Apr 13 '17 at 12:34

Community

asked Jun 28 '16 at 09:11

newGIS

Could you upload your svg file to a public server so that others could test it? – Joseph Jun 28 '16 at 09:58
how can upload the file with public server? – newGIS Jun 28 '16 at 10:15
i can send it to you if you want – newGIS Jun 28 '16 at 10:17
I meant with services such as File Dropper or Dropbox etc :) – Joseph Jun 28 '16 at 10:20
i put the file in dropbox-how can you see it? – newGIS Jun 28 '16 at 10:38
You can post the link to your file as a comment here so that others can click and gain access to it. – Joseph Jun 28 '16 at 10:39
https://www.dropbox.com/s/a26f5bhgu5nwedo/2016-06-28_114612.svg?dl=0 – newGIS Jun 28 '16 at 10:40
Let us continue this discussion in chat. – newGIS Jun 28 '16 at 10:44

0 Answers0
