My environment:

Windows 7 Professional: Service Pack 1 64-Bit

QGIS: QGIS-Version: 2.8.2-Wien 32-Bit

Microsoft Office 2010 Professional: 32-bit

I want to connect an ESRI Personal Geodatabase (*.mdb) with the "Add Vectorlayer" feature in QGIS QGIS vector layer

The problem is with the Access Jet driver.

My Questions:

Has anybody successfully connected to an ESRI Personal Geodatabase in QGIS 2.8.2?

BDD
  • 651
  • 6
  • 18
Dominik
  • 21
  • 1
  • 2
  • use Datei (personal geodatabase is a file .mdb though file geodatabase is database) – Mapperz Jun 16 '15 at 16:21
  • 1
    What error are you getting and how are you trying to connect using Jet? – Branco Jun 16 '15 at 17:53
  • Is it a geodatabase though? Just because it's a .mdb (Microsoft Jet (Access) database) doesn't necessarily mean it's a geodatabase. Perhaps your Jet error is 'can't find the table gdb_####'. That aside you need to set it up in ODBC first see http://www.northrivergeographic.com/qgis-accessing-personal-geodatabase about setting up ODBC for JET – Michael Stimson Jun 16 '15 at 21:55
  • This question Has anybody successfully connected to an ESRI Personal Geodatabase in QGIS 2.8.2? is a duplicate of https://gis.stackexchange.com/questions/129514/opening-esri-personal-geodatabase-mdb-using-qgis-2-6 – nmtoken Jun 17 '15 at 09:27

1 Answers1

2

Thank you for your inputs.

My source is an ESRI Personal Geodatabase (*.mdb). I can open the source in MS Access. The table GDB_ColumInfo, GDB_GeoColumns, GDB_ITEMRELATIONSHIPS, etc. and many Geometry-Table are there.

I have already created a successful connection on File (Datei) and File Type ESRI-Personal GeoDatabase (*.mdb). It runs, but it is a "READ ONLY" Connection.

But now, I want a Connection on Database (Datenbank) with the hope this will be a "READ-WRITE" Connection.

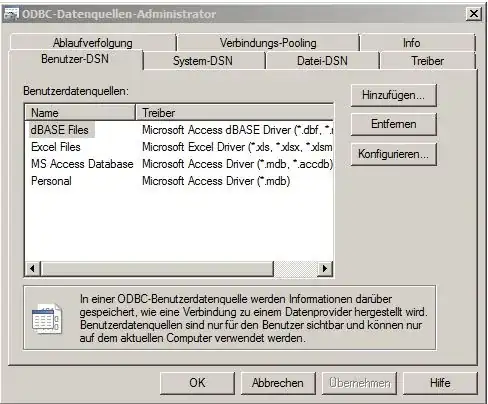

I read a lot in the forum, I must first install the correct Access Jet Driver. 32bit or 64 bit under MS Windows System Settings enter image description here

I will now following the way from Michael Miles Stimson with northrivergeographic.com/qgis-accessing-personal-geodatabase

Dominik
