Discrete Slant Stack on seismic data

Question

In the formula for slant stacking (tau-p transform) a substitution t=tau+d/v is made.

If we consider the substitution as a vector equation then how can vector d/v have the same length as vector t given that in most surveys the number of data points for offset(d) is less than for time (t) .

Answer 1

The $\tau$–$p$ time domain $t$ is a function of offset $d$, so the result is an array of size $n_t \times n_d$, where $n$ is the number of samples.

The inputs are a vector $\tau$ of travel time at zero offset, or $t(0)$, an array $p$ of ray parameter, which is in turn a function of velocity $V$ and angle, and a vector $d$ (usually called $x$) of offset.

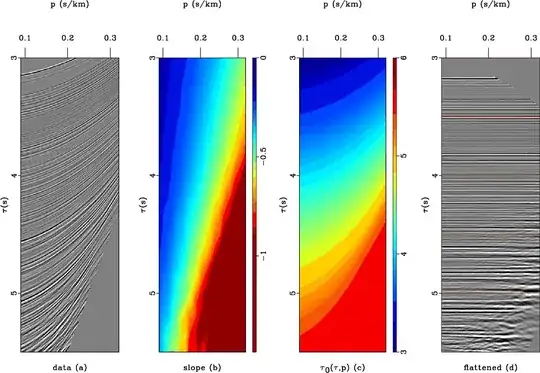

Here's an example of some visualizations of the $\tau$–$p$ domain from a paper by Sergey Fomel; they might help explain what I mean by an 'array' — you can think of them as images:

The resulting travel-time $t(d)$ is an array of size $n_t \times n_d$, where $n$ is the number of samples. For a given offset at a given time sample, the result is a scalar — a single value of $t$.

By the way, stevej's answer is a great explanation of how exactly to calculate the ray parameter term, given limited information. Do follow that link to Yilmaz, and maybe also read the Radon transform article.

Answer 2

To be consistent with the references referred to in this post, I will re-write your equation of the $\tau-p$ transform as: $t = \tau + px$

Where $t$ is two-way time, $x$ is offset, $p$ is ray parameter ($\Delta x / \Delta t$ or $\sin(\theta) / velocity$), $\tau$ is the intercept time when $p=0$ (Yilmaz, 2001).

There seem to be at least two methods for overcoming the finite aperture, or limited offset and ray parameter range, problem when transforming from time-offset ($t-x$) domain to $\tau-p$ domain:

1. Sample ray parameter $p$ such $np = nx$; i.e. number of ray parameter samples equals number of offset samples (Yilmaz, 2001).
2. Formulate the the computation of the transform as a least-squares estimation problem (Kostov, 1990; Thorson and Claerbout, 1985).

Kostov, C., 1990. Multi-channel seismic experiment with a drill-bit source. Phd Thesis, Standford University. See Appendix C for details on least-squares solution.

Thorson, J. and Claerbout, J., 1985. Velocity-stack and slant-stack stochastic inversion. Geophysics, Vol. 50, N. 12, P. 2727-2741.

Yilmaz, Öz (2001). Seismic data analysis. Society of Exploration Geophysicists. ISBN 1-56080-094-1. See SEG Wiki page on the problem.
