I'm interested in this problem because I'm interested in obtaining a rough estimate of the average temperature increase of the sea given a net radiative forcing of 0.6 W/m^2.

But in order to obtain an estimate, I need to know the volume of the ocean between 0-2000m. I'm also interested in knowing the volume of the ocean between any other two arbitrary layers of the ocean (0-1000m, 1000-2000m, 0-4000m, etc..)

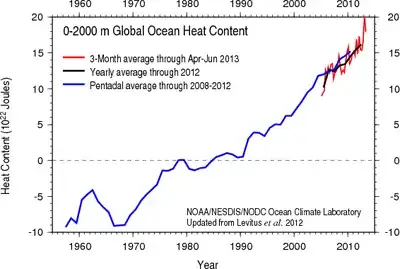

enter image description here

arkaia
  • 15,447
  • 4
  • 52
  • 122
InquilineKea
  • 7,827
  • 2
  • 22
  • 60
  • Are you sure you are looking for volume? Volume = height x width x depth. If you are curious about a particular ocean... you could look up the surface area of the ocean and multiply it times the depth. – f.thorpe Jul 05 '14 at 23:32
  • 2
    Yes. Thing is, bathymetry matters, making width hard to calculate. – InquilineKea Jul 06 '14 at 04:50
  • Ah so it sounds like you want a computer program like ArcGIS that can load bathymetry and do 3-D computations. – f.thorpe Jul 06 '14 at 05:28

1 Answers1

7

You can find gridded topography and bathymetry data, freely accessible, on the website of the NOAA. For instance you have the ETOPO1 dataset here.

Once you downloaded it you can work it out with your favourite GIS software or GIS-supporting programming language.

The equations to calculate the volume based on the gridded cells is given on this page from the NGDC website.

Volume Calculation

Volumes were calculated for each ocean grid cell in ETOPO1 using Equation 1 to determine cell area, and Equation 2 to determine cell volume. Cell areas and volumes were then summed over each ocean or marginal sea.

Equation 1: $dA = \frac{a^2\cdot cos(ø)\cdot (1-e^2)\cdot dø\cdot dl}{(1-e^2 \cdot sin^2ø)^2}$
Equation 2: $dV = dA \cdot depth$

where:
Latitude (ø) = latitude of cell's center (in radians)
Unit of Latitude (dø) = 1 arc-minute ($2.908882 \cdot 10^{-4}$ radians)
Unit of Longitude (dl) = 1 arc-minute ($2.908882 \cdot 10^{-4}$ radians)

The WGS84 spheroid was used for values of Earth's radius and eccentricity:
Equatorial radius (a) = 6378.137 km
Eccentricity (e) = 0.08181919
