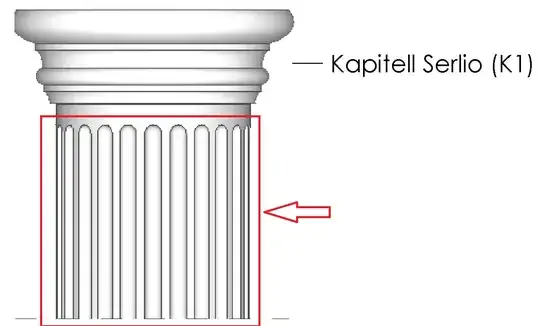

like this question, but my part is from the pillar body itself, how you create this rounded half circle surrounding perfect in rounded pillar?

here the pictures, enter image description here (picture from previous question above)

Community
  • 1
Rem
  • 129
  • 1
  • 9
  • yeah you right, I didn't see the gif until finished :) but the different is in the column profile, he create rectangle but what I need is half circle in top and bottom.. but thank, I think i can edit them manually to make half circle.. :D – Rem Jun 18 '16 at 01:28

1 Answers1

2

You could add a cylinder and inset each face (I to inset, then F6 and change to 'individual'). Then extrude inward and bevel the edges as necessary.

result

The result looks like this. The geometry may be difficult to work with if you're using a subdivision surface, in which case I would add extra loop cuts on the edges between the insets to connect horizontally.
