Light reflection and refraction in Blender Internal?

Question

I have noticed when trying to make a mirror in Blender that it does not reflect light onto other objects properly.

Also, it seems that setting the IOR (Index of Refraction) for transparent objects does not effect light either.

How do I get reflection or refraction effects in Blender?

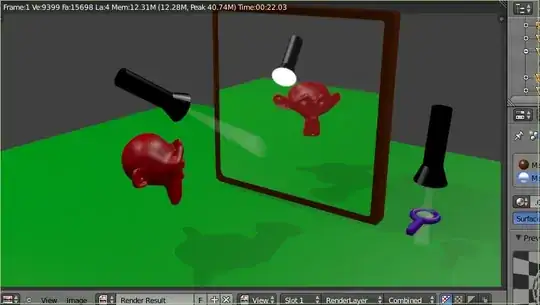

$Trying to reflect and refract in blender$

score 11 · Accepted Answer · edited Jul 23 '14 at 00:37

11

You need to use a ray-tracing render engine. Blender's internal render system has a ray-tracer, but it doesn't have the ability to reflect or refract light beams. You could possibly use Cycles for this.

edited Jul 23 '14 at 00:37

GiantCowFilms

18,710
10
76
138

answered May 27 '13 at 05:02

Daniel

3,624
4
31
59

4

small clarification - blender-internal has a ray-tracer, it just doesn't support this feature. – ideasman42 May 27 '13 at 12:44
@ideasman42 What's that supposed to mean? – Daniel May 27 '13 at 13:26
@Dan the Man Blender Internal has raytracing capabilities, it just doesn't do caustics nor the features wanted in OP – jesterKing May 27 '13 at 16:14
Hmm, according to this question it does not look like refraction is supported (yet). – Stephen May 27 '13 at 17:58
3

Refraction is supported in both Cycles and Blender Internal, diffraction isn't. – brecht May 30 '13 at 19:32

score 0 · Answer 2 · answered Feb 27 '18 at 21:17

Refraction is now possible in the Blender Internal engine. Go to your material settings and enable transparency. Change the transparency type to raytrace. Turn the alpha to a low value (like 0) and you should see a refraction effect. You can change the IOR and fresnel too. A good IOR setting for glass would be 1.45.

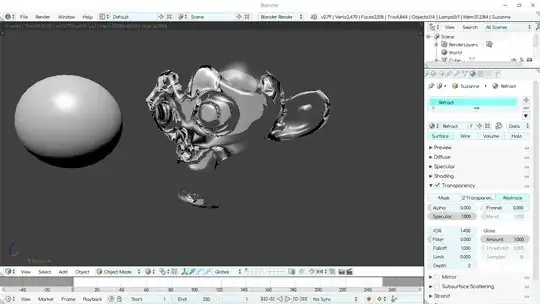

$A screenshot showing the Blender Internal refraction capability$
