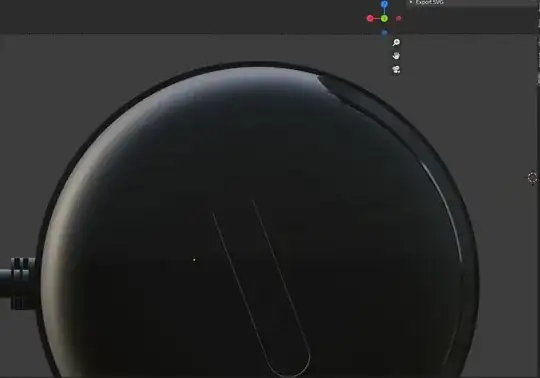

I am trying to export this part to an svg and would like to keep the exported paths as simple as possible:

enter image description here

The result looks good at first

enter image description here

However, when viewed in Inkscape the results I get are short paths and lots of individual nodes (especially in the corner areas, e.g. on the top right - without clear edges).

enter image description here

I also removed the Sampling modifier from the Geometry modifier stack (mentioned here) but it didn't help. Any other settings that yield simler shapes and less short paths (also fewer nodes)?

evolved
  • 123
  • 4
  • Blender export each Edge as an individual svg stroke. Maybe you'll get a cleaner result by using Path/Simplify (in Inkscape). – thibsert Jan 20 '21 at 00:39
  • Thank you @thibsert I tried that already but it doesn't really help because these are individual paths that are really short - so there is not much to simplify unfortunately. The best solution I have so far is to use the bezier tool in inkscape and draw the lines by hand. – evolved Jan 20 '21 at 17:53

0 Answers0
