I'm trying to get an outline shader to work in Blender 2.8/2.9 but the results are not like expected. After I tried it several times on my own, I followed this tutorial:
https://www.youtube.com/watch?v=hp4V-9oFmnM
It also includes an examplary .blend file:
https://drive.google.com/file/d/1EffSaNaOWk53MCzr2RFK8SBHegBE1UmP/view

First, the results I get never yields a proper outline. Instead it either appears transparent or makes the object completely black. Results are the same in viewport and when rendering. Results seem to change arbitrarily when switching from Eevee to Cycles but both do not work. It seems like the backface of the solidified object is either not transparent or the whole solidified object is transparent.

Here some images from viewport in render view:
With Eevee enter image description here

With Cycles enter image description here

These are the steps of the tutorial which I also followed:

  • Create object and assign arbitrary material to it
  • Add solidify modifier, increase thickness, invert normals and assign second material slot
  • Create an outline material, in this case it is just an Emission BSDF of black color assigned to surface of the material output
  • In material settings, apply Backface Culling

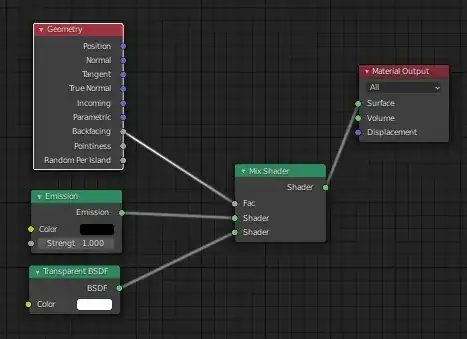

Here the graphs for the outline shaders I tried:
enter image description here

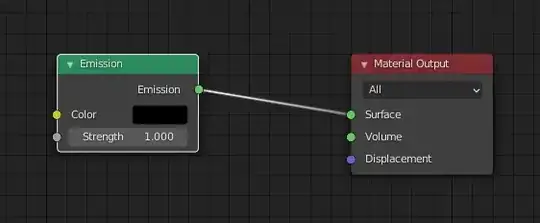

enter image description here

In the example, Blend mode is set to opaque, but it doesn't make a difference if I switch it to Alpha, same for Shadow mode.
Here an example of the settings I used:

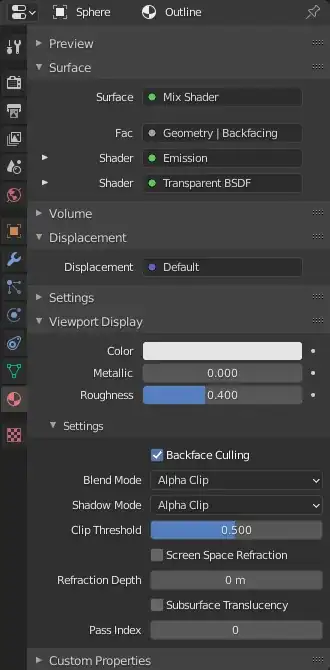

enter image description here

I tried everything but nothing works. Do I miss a secret setting somewhere? Rendering is done on CPU only - is it maybe a general hardware/software issue?

Solvalou
  • 111
  • 4
  • 2
    Hello, please [edit] your question and add images so that other users do not need to follow external links that may at some point lead to a 404 and become useless in the future. All information relevant to your Q should be contained in the text of your question for users interested in answering to see. Thanks! :) – Timaroberts Oct 29 '20 at 21:48
  • @Timaroberts You are absolutely right! Thanks for your suggestion :) – Solvalou Oct 29 '20 at 22:17
  • Basically the problem you have is that the smaller object is not receiving light. You can go around using an Emission shader underneath but it means it will be shadeless. I've just made a quick tutorial here covering this problem. https://blender.stackexchange.com/questions/35805/getting-an-outline-with-backface-culling-blender-render/295984#295984 – B_o_ Jul 01 '23 at 13:53
