I can't seem to figure out how to create an animation of a zero twisting into an infinity symbol. I'm brand new to blender, and not really sure how to manipulate a torus to achieve this. Any help would be appreciated!

iKlsR
  • 43,379
  • 12
  • 156
  • 189
John Smith
  • 51
  • 1
  • 2
  • Related: http://blender.stackexchange.com/q/16467/599 – gandalf3 Oct 23 '14 at 17:00
  • thanks! this got me on the right track, but I'm still pretty lost (I downloaded blender 2 days ago). I downloaded your "spinning_ball2" file, but am unsure on how to change the animation from a ball to just an infinity symbol. Sorry if I sound dumb! – John Smith Oct 23 '14 at 17:25
  • Changing the maximum amount of twisting should work. I don't have time to write a complete answer atm, but here's a .blend with an example: http://www.pasteall.org/blend/32315 – gandalf3 Oct 23 '14 at 17:35
  • wow, thank you very much! the blend example allowed me to see what different settings do. I appreciate the help! – John Smith Oct 23 '14 at 17:50
  • If no longer a torus, what would this shape be called? – user610620 Aug 06 '22 at 12:28

7 Answers7

9

One way would be to do something similar to this, but with fewer twists.

I found that 100° twist with the Simple Deform modifier gives a pretty good infinity symbol when seen from a front view:

enter image description here

By animating the amount of twisting (you can hover over almost any UI element and press I to insert a keyframe), you can get a result like this:

enter image description here

vklidu
  • 36,165
  • 1
  • 61
  • 135
gandalf3
  • 157,169
  • 58
  • 601
  • 1,133
4

Quick solution I discovered as a new user:

  1. Object Mode: Add->Curve->Circle
  2. Tab (edit mode) & A until everything is unselected
  3. Select handles on opposite sides (say on the Y/green axis) and X to delete them
    (must be deleted as a pair to keep symmetry)
  4. Select the END of one of the 2 remaining handles (on the X/red axis) and rotate 180° R X 180 Enter
  5. Optional: Select both handles with A, scale with: S Y 0.5 Enter

Turn it into a tube:

  1. Shape: Resolution: Preview U: increase to smooth curvature
  2. Shape: 3D
  3. Fill: Full
  4. Geometry: Bevel: Depth: increase as desired
  5. Geometry: Bevel: Resolution: increase to desired smoothness of tube
  6. Active Spline: Smooth should be checked
NetAlien
  • 51
  • 3
2

You could use Shape Keys in Object Mode add to shape keys in the mesh/Properties.

enter image description here

Switch to Edit Mode TAB

Select the vertices at the top and bottom (yellow) switch on proportional editing O, scale S,(adjust the influence as indicated by the white circle with your mouse wheel) constrain to y-axis Y.

enter image description here

stacker
  • 38,549
  • 31
  • 141
  • 243
2

You could make a bone twist one half of the torus. Sadly, the mesh near the middle gets really thin.

Twising a zero into infinity in blender

qtip
  • 21
  • 1
  • I think one of the laplacian modifiers is meant to help with that kind of thinning; don't have time to look farther right now. – Weaver Dec 12 '14 at 02:27
1

Torus as an infinity symbol:

  1. Object Mode: Add->Curve->Circle
  2. Object Mode: Add->Mesh->Torus (the circle will be hidden inside the torus -- Torus should be selected)
  3. Add Modifier->Deform->Curve
  4. Object: BezierCurve
  5. Apply (leave Deformation Axis as X -- the result won't look right; but...)
  6. G Y -1Enter

    Voila!
NetAlien
  • 51
  • 3
  • I actually really like this method. It was the easiest. Though the normals got messed up afterwards. I decided to use a full line in the finished torus and turned it into a curve and played with that. Thanks! – PepperAddict Feb 04 '18 at 01:41
1

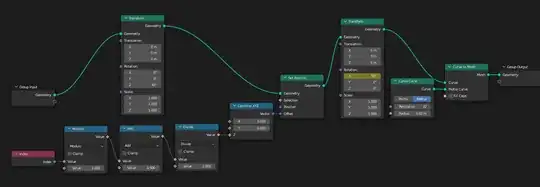

Geometry Nodes

just join the party here :) The gandalf3's way if I can say that ... two points moved upward ... so just an optical illusion based on point of view :)

enter image description here enter image description here

Another way to move control points up and down from object centre to easier change a shape and animate ...

enter image description here enter image description here

vklidu
  • 36,165
  • 1
  • 61
  • 135
  • do you think possible to make the animation symmetrical in this case? – lemon Feb 04 '23 at 13:03
  • Sorry ... Do you see it asymmetrical now in this setup? Or I didn't get the point :) – vklidu Feb 04 '23 at 13:06
  • I meant it looks like the left part flatten first or as if the left part is initiating the transition (not only your solution but 'all'). I was wondering if it is possible to do it so that both sides (left/right) are symmetrical? – lemon Feb 04 '23 at 13:10
  • Hm ... I have a problem to imagine how such thing moves (other than the stacker's answer. – vklidu Feb 04 '23 at 13:17
0

Curve of two points

Curve Circle simplified into a two control points only ...

enter image description here

Each control point Hooked by Empty ... animate Empty rotation (and scale to fix curvature) ...

enter image description here

Note:

  • I set under Curve Properties > Smooth 0.5 (if zero there was a geometry twist)
  • with just two control points there is probably not possible to set more roundy shape of infinity

vklidu
