I am new at Blender, I want to design a mesh of a single twisted yarn, which is the best strategy to design this mesh. Sorry if my question sounds dumb.

I am attaching the picture ![enter image description here enter image description here

I foud a tutorial in youtube: https://www.youtube.com/watch?v=cP1pY14fVC4&list=LLuORS2hOBqsUJEgE645iWDQ&index=2&t=1026s, however, I dont know how to merge the mesh.

EDIT Is this mesh true, I am going to use it for physical simulation

enter image description here

Monika
  • 187
  • 11
  • 2
    please show an image of a single twisted yarn, how is it made exactly, several ropes? etc.. – moonboots Sep 30 '19 at 13:33
  • @moonboots, I am attaching the picture. – Monika Oct 01 '19 at 18:05
  • 1
    please tell me if that answer helps: https://blender.stackexchange.com/questions/114563/how-to-create-twisted-wires-in-blender/114566#114566 – moonboots Oct 02 '19 at 05:05
  • Thanks so much, yes, indeed, I found a similar video earlier: https://www.youtube.com/watch?v=xYhIoiOnPj4. Indeed thanks for the help. – Monika Oct 02 '19 at 07:59
  • @moonboots, i am trying to follow this tutorial, which create twisted yarn, https://www.youtube.com/watch?v=cP1pY14fVC4, at minute: 16:50, I cannot replicate it, please see picture above, I dont know why they dont merge – Monika Oct 03 '19 at 10:25
  • 2
    you need to enable the Snap option (magnet icon) / vertex mode, (or press ctrl to enable the Snap while you move your mesh) and also the Auto Merge option, which, in 2.8, is in the 3D view N panel (top right) > Tools > Options, tell me if it works – moonboots Oct 03 '19 at 10:40
  • Maybe you don't say enough, do they snap? If they do, they won't merge as long as you don't enable the auto-merge option, if you've enabled auto-merge I don't know what's the problem, maybe share your file – moonboots Oct 03 '19 at 13:30
  • I am doing it again,if it did not work, I would share my file, thanks so much for help. – Monika Oct 03 '19 at 13:31
  • 1
    also, make sure you're in Vertex select mode – moonboots Oct 03 '19 at 13:35
  • @moonboots, i ididnot work, after extruding, the mesh isnot converging, although I made sure to snap vertices by holding shift and move, I dont know what is the problem I missing, I am attaching the file, hope you could help me. – Monika Oct 06 '19 at 16:40
  • @moonboots, I am adding the file in the question part, thanks. – Monika Oct 06 '19 at 16:41
  • You didn't enable the Auto-Merge option (N panel > Tool > Options > Auto-Merge, but anyway, your shape is not symmetrical, so it won't twist properly, I'm going to make a full answer – moonboots Oct 06 '19 at 16:58

1 Answers1

2
  • Create a 12 vertices circle.

enter image description here

  • Enable the Snap option (Vertex mode), or just press ctrl when you'll need it, enable the Auto-Merge option.

enter image description here

  • Duplicate your circle, with Snap and Auto-Merge it will snap and merge the vertices. Delete the inner vertices, bevel the 3 central vertices with a shiftctrlB.

enter image description here

  • Extrude up, create horizontal edge loops with ctrlR. To make sure you don't have flipped normals, press shiftctrlN. Back in Object mode, move the origin to the geometry.

enter image description here

  • Give your object a Simple Deform modifier, Angle 120°, Axis Z.

enter image description here

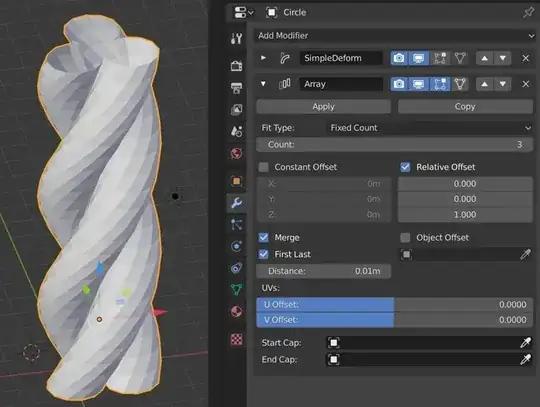

  • Give it an Array modifier, enable the Merge and First Last options.

enter image description here

  • Give it a Subdivision Surface modifier, and also smooth it: Object > Shade Smooth.

enter image description here

  • To make it follow a curve, give it a Curve modifier. Make sure that the curve's origin is at its beginning, put the object at the same point.
moonboots
  • 155,560
  • 7
  • 105
  • 171
  • Thanks so much, the automerge isnot appearing in 2.8 blender , can I use ctrl+j. I am using mac. I am adding the figure in the description. – Monika Oct 06 '19 at 20:13
  • 1
    I'm also on Mac, Auto-Merge should appear once in Edit mode, are you in Edit mode? – moonboots Oct 06 '19 at 20:17
  • Sorry, I am very dumb as I am still new user in blender, yes, it works, thanks. – Monika Oct 06 '19 at 20:18
  • I am stuck at the point of extruding up, I know to create a loop ctrl+N. I am adding the picture in description – Monika Oct 06 '19 at 20:57
  • Ctrl R to create new edge loop(s), but you should not completely reedit your question, please reintroduce the initial question and images – moonboots Oct 06 '19 at 21:02
  • 1
    Plus, if you're not familiar yet with basic blender operations you should work on some beginners tutorials ;) – moonboots Oct 06 '19 at 21:03
  • I am going to use this mesh for physical simulation and it seems array modifier doesnot capture the vertices and edges, no mesh data point – Monika Oct 06 '19 at 23:45
  • Please see the mesh in question description, is this mesh true? – Monika Oct 07 '19 at 00:34
  • What do you mean by "true"? Maybe share your file so that we can check – moonboots Oct 07 '19 at 06:44
  • I mean whether there is an actual mesh data point where I can use it for physics-based simulation. Here is the file on my google drive: https://drive.google.com/open?id=1UaeUTAr1J19QiWW2EnMmJqFRVxtPdx40 – Monika Oct 07 '19 at 07:35
  • Not sure about your second Simpledeform, what is it for? Maybe what you should use is a Subdivision Surface modifier to smooth it, and also Object > Shade Smooth. But once you're glad with your object you can use it for physics, of course. – moonboots Oct 07 '19 at 07:52
  • Yes, there are two, maybe added by mistake,but when I follow up with your steps,there is no actual mesh in the array, so I did manually by rotating the actual mesh, I dont know why the edit mode gives the mesh data point different from the object mode, I am really confused. – Monika Oct 07 '19 at 08:21
  • The mesh in stl sounds okay so far, however, the technique of array doesnot really have mesh data point, i did this one by accident, i dont know how I extended the mesh in rotation. This technique in minute: 18:40, in this tutorial: https://www.youtube.com/watch?v=cP1pY14fVC4&list=LLuORS2hOBqsUJEgE645iWDQ&index=2&t=1141s. I dont know how to rotate as he did, when I do this step, the vertices intervene. – Monika Oct 07 '19 at 10:43
  • thanks so much, it was the fourth button of subdivide surface not pressed. – Monika Oct 08 '19 at 10:17
  • 1
    at 18:40 he uses the Proportional Editing option (little blue sphere icon) with the Linear setting, but the Simple Deform modifier is more precise – moonboots Oct 08 '19 at 10:32
  • I did it, I will try. A side question: How can convert the STL mesh to VTK Mesh in blender? – Monika Oct 08 '19 at 10:49
  • 1
    Sorry I don't know anything about these formats so I can't answer – moonboots Oct 08 '19 at 10:57
  • I had another problem, I am trying to export a simple shape for testing my code, the exported is in OBJ format. Blender gives me an error that location is unknown or something related to volume, I just use simple shapes like sphere and ball. I increase the scale to100 while exporting and still the same error. Do you have any idea why I cannot get the OBJ mesh. – Monika Oct 08 '19 at 15:32
