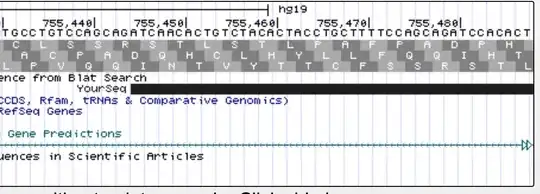

I'm a little confused about how the position indices work in the browser. Based on the picture below, is base number 755440 an A or a G?

The general question is how do the indexing guides work? Is the base right under the | the one corresponding to the index or is it the one just before the |?

enter image description here

Konrad Rudolph
  • 4,845
  • 14
  • 45
Paghillect
  • 309
  • 1
  • 7

1 Answers1

5

It's an A. The number refers to the position just before the |. This is clearer on different zoom levels, but I double checked by going to the very beginning of a chromosome:

chr7 position 1-15

As you can see in the image above, the | is always after the base it refers to. I also confirmed by checking a few random positions using another genome browser which places the positions unambiguously above each base.

For more details, see this UCSC blog post.

terdon
  • 10,071
  • 5
  • 22
  • 48
  • 2
    Yep and the reason for this is because we store everything internally as zero based coordinates but then display everything in a 1-based format. For more information see the following blog post: http://genome.ucsc.edu/blog/the-ucsc-genome-browser-coordinate-counting-systems/ – Christopher Lee Mar 19 '18 at 16:44
  • @ChristopherLee thank you! I had actually written out an answer stating that it must be the position after since bed files start at 0 and then thought to check, just to make sure, and was very much surprised that it was actually the position before! – terdon Mar 19 '18 at 16:53
