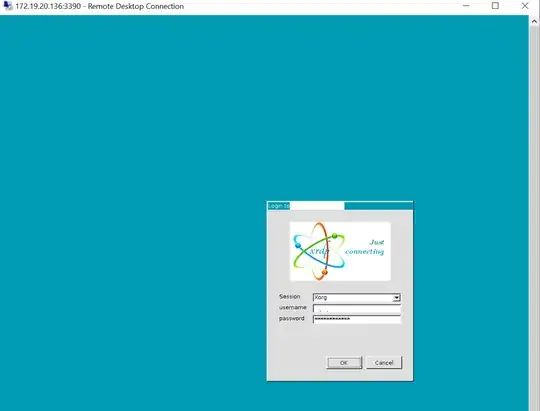

I'm trying to use xrdp (latest version 0.9.12-1) to connect from windows 10 to Ubuntu 20.04.5 LTS. When I get to this login screen, I type in my credentials, click ok, then xrdp just freezes for around 5 minutes, then unfreezes again but stays on the same screen and nothing happens. How do I fix this?
I tried the following steps from another post with the same question, but it didn't work for me:
sudo apt-get purge xrdp
sudo apt-get install xrdp
sudo apt-get install xfce4
sudo apt-get install xfce4-goodies
sudo cp /etc/xrdp/xrdp.ini /etc/xrdp/xrdp.ini.bak
sudo sed -i 's/3389/3390/g' /etc/xrdp/xrdp.ini
sudo sed -i 's/max_bpp=32/#max_bpp=32\nmax_bpp=128/g' /etc/xrdp/xrdp.ini
sudo sed -i 's/xserverbpp=24/#xserverbpp=24\nxserverbpp=128/g' /etc/xrdp/xrdp.ini
echo xfce4-session > ~/.xsession
sudo nano /etc/xrdp/startwm.sh
comment these lines to:
#test -x /etc/X11/Xsession && exec /etc/X11/Xsession
#exec /bin/sh /etc/X11/Xsession
add these lines:
xfce
startxfce4
sudo /etc/init.d/xrdp start
[20221110-10:34:28] [INFO ] listening to port 3350 on 127.0.0.1
[20221110-10:59:33] [DEBUG] libscp initialized
[20221110-10:59:33] [DEBUG] Testing if xrdp-sesman can listen on 127.0.0.1 port 3350.
[20221110-10:59:33] [DEBUG] Closed socket 6 (AF_INET6 ::ffff:127.0.0.1 port 3350)
[20221110-10:59:33] [INFO ] starting xrdp-sesman with pid 1465
[20221110-10:59:33] [INFO ] listening to port 3350 on 127.0.0.1
[20221110-11:03:39] [INFO ] shutting down sesman 1
[20221110-11:03:39] [DEBUG] Closed socket 8 (AF_INET6 ::ffff:127.0.0.1 port 3350)
[20221110-11:04:04] [DEBUG] libscp initialized
[20221110-11:04:04] [DEBUG] Testing if xrdp-sesman can listen on 127.0.0.1 port 3350.
[20221110-11:04:04] [DEBUG] Closed socket 6 (AF_INET6 ::ffff:127.0.0.1 port 3350)
[20221110-11:04:04] [INFO ] starting xrdp-sesman with pid 1462
[20221110-11:04:04] [INFO ] listening to port 3350 on 127.0.0.1
[20221110-11:25:54] [INFO ] shutting down sesman 1
[20221110-11:25:54] [DEBUG] Closed socket 8 (AF_INET6 ::ffff:127.0.0.1 port 3350)
[20221110-11:27:47] [DEBUG] libscp initialized
[20221110-11:27:47] [DEBUG] Testing if xrdp-sesman can listen on 127.0.0.1 port 3350.
[20221110-11:27:47] [DEBUG] Closed socket 6 (AF_INET6 ::ffff:127.0.0.1 port 3350)
[20221110-11:27:47] [INFO ] starting xrdp-sesman with pid 1470
[20221110-11:27:47] [INFO ] listening to port 3350 on 127.0.0.1
[20221122-14:51:20] [INFO ] shutting down sesman 1
[20221122-14:51:20] [DEBUG] Closed socket 8 (AF_INET6 ::ffff:127.0.0.1 port 3350)
[20221122-14:51:54] [DEBUG] libscp initialized
[20221122-14:51:54] [DEBUG] Testing if xrdp-sesman can listen on 127.0.0.1 port 3350.
[20221122-14:51:54] [DEBUG] Closed socket 6 (AF_INET6 ::ffff:127.0.0.1 port 3350)
[20221122-14:51:54] [INFO ] starting xrdp-sesman with pid 1499
[20221122-14:51:54] [INFO ] listening to port 3350 on 127.0.0.1
[20221202-16:19:12] [INFO ] shutting down sesman 1
[20221202-16:19:12] [DEBUG] Closed socket 8 (AF_INET6 ::ffff:127.0.0.1 port 3350)
[20221202-16:19:51] [DEBUG] libscp initialized
[20221202-16:19:51] [DEBUG] Testing if xrdp-sesman can listen on 127.0.0.1 port 3350.
[20221202-16:19:51] [DEBUG] Closed socket 6 (AF_INET6 ::ffff:127.0.0.1 port 3350)
[20221202-16:19:51] [INFO ] starting xrdp-sesman with pid 1486
[20221202-16:19:51] [INFO ] listening to port 3350 on 127.0.0.1
[20221207-11:12:01] [INFO ] shutting down sesman 1
[20221207-11:12:01] [DEBUG] Closed socket 8 (AF_INET6 ::ffff:127.0.0.1 port 3350)
[20221207-11:25:18] [DEBUG] libscp initialized
[20221207-11:25:18] [DEBUG] Testing if xrdp-sesman can listen on 127.0.0.1 port 3350.
[20221207-11:25:18] [DEBUG] Closed socket 7 (AF_INET6 ::ffff:127.0.0.1 port 3350)
[20221207-11:25:18] [INFO ] starting xrdp-sesman with pid 1085654
[20221207-11:25:18] [INFO ] listening to port 3350 on 127.0.0.1
Here is my xrdp.ini file:
[Globals]
; xrdp.ini file version number
ini_version=1
; fork a new process for each incoming connection
fork=true
; ports to listen on, number alone means listen on all interfaces
; 0.0.0.0 or :: if ipv6 is configured
; space between multiple occurrences
;
; Examples:
; port=3390
; port=unix://./tmp/xrdp.socket
; port=tcp://.:3390 127.0.0.1:3390
; port=tcp://:3390 :3390
; port=tcp://<any ipv4 format addr>:3390 192.168.1.1:3390
; port=tcp6://.:3390 ::1:3390
; port=tcp6://:3390 :3390
; port=tcp6://{<any ipv6 format addr>}:3390 {FC00:0:0:0:0:0:0:1}:3390
; port=vsock://<cid>:<port>
port=3390
; 'port' above should be connected to with vsock instead of tcp
; use this only with number alone in port above
; prefer use vsock://<cid>:<port> above
use_vsock=false
; regulate if the listening socket use socket option tcp_nodelay
; no buffering will be performed in the TCP stack
tcp_nodelay=true
; regulate if the listening socket use socket option keepalive
; if the network connection disappear without close messages the connection will be closed
tcp_keepalive=true
; set tcp send/recv buffer (for experts)
#tcp_send_buffer_bytes=32768
#tcp_recv_buffer_bytes=32768
; security layer can be 'tls', 'rdp' or 'negotiate'
; for client compatible layer
security_layer=negotiate
; minimum security level allowed for client for classic RDP encryption
; use tls_ciphers to configure TLS encryption
; can be 'none', 'low', 'medium', 'high', 'fips'
crypt_level=high
; X.509 certificate and private key
; openssl req -x509 -newkey rsa:2048 -nodes -keyout key.pem -out cert.pem -days 365
; note this needs the user xrdp to be a member of the ssl-cert group, do with e.g.
;$ sudo adduser xrdp ssl-cert
certificate=
key_file=
; set SSL protocols
; can be comma separated list of 'SSLv3', 'TLSv1', 'TLSv1.1', 'TLSv1.2', 'TLSv1.3'
ssl_protocols=TLSv1.2, TLSv1.3
; set TLS cipher suites
#tls_ciphers=HIGH
; Section name to use for automatic login if the client sends username
; and password. If empty, the domain name sent by the client is used.
; If empty and no domain name is given, the first suitable section in
; this file will be used.
autorun=
allow_channels=true
allow_multimon=true
bitmap_cache=true
bitmap_compression=true
bulk_compression=true
#hidelogwindow=true
#max_bpp=32
max_bpp=128
new_cursors=true
; fastpath - can be 'input', 'output', 'both', 'none'
use_fastpath=both
; when true, userid/password must be passed on cmd line
#require_credentials=true
; You can set the PAM error text in a gateway setup (MAX 256 chars)
#pamerrortxt=change your password according to policy at http://url
;
; colors used by windows in RGB format
;
blue=009cb5
grey=dedede
#black=000000
#dark_grey=808080
#blue=08246b
#dark_blue=08246b
#white=ffffff
#red=ff0000
#green=00ff00
#background=626c72
;
; configure login screen
;
; Login Screen Window Title
#ls_title=My Login Title
; top level window background color in RGB format
ls_top_window_bg_color=009cb5
; width and height of login screen
ls_width=350
ls_height=430
; login screen background color in RGB format
ls_bg_color=dedede
; optional background image filename (bmp format).
#ls_background_image=
; logo
; full path to bmp-file or file in shared folder
ls_logo_filename=
ls_logo_x_pos=55
ls_logo_y_pos=50
; for positioning labels such as username, password etc
ls_label_x_pos=30
ls_label_width=65
; for positioning text and combo boxes next to above labels
ls_input_x_pos=110
ls_input_width=210
; y pos for first label and combo box
ls_input_y_pos=220
; OK button
ls_btn_ok_x_pos=142
ls_btn_ok_y_pos=370
ls_btn_ok_width=85
ls_btn_ok_height=30
; Cancel button
ls_btn_cancel_x_pos=237
ls_btn_cancel_y_pos=370
ls_btn_cancel_width=85
ls_btn_cancel_height=30
[Logging]
LogFile=xrdp.log
LogLevel=DEBUG
EnableSyslog=true
SyslogLevel=DEBUG
; LogLevel and SysLogLevel could by any of: core, error, warning, info or debug
[Channels]
; Channel names not listed here will be blocked by XRDP.
; You can block any channel by setting its value to false.
; IMPORTANT! All channels are not supported in all use
; cases even if you set all values to true.
; You can override these settings on each session type
; These settings are only used if allow_channels=true
rdpdr=true
rdpsnd=true
drdynvc=true
cliprdr=true
rail=true
xrdpvr=true
tcutils=true
; for debugging xrdp, in section xrdp1, change port=-1 to this:
#port=/tmp/.xrdp/xrdp_display_10
; for debugging xrdp, add following line to section xrdp1
#chansrvport=/tmp/.xrdp/xrdp_chansrv_socket_7210
;
; Session types
;
; Some session types such as Xorg, X11rdp and Xvnc start a display server.
; Startup command-line parameters for the display server are configured
; in sesman.ini. See and configure also sesman.ini.
[Xorg]
name=Xorg
lib=libxup.so
username=ask
password=ask
ip=127.0.0.1
port=-1
code=20
[Xvnc]
name=Xvnc
lib=libvnc.so
username=ask
password=ask
ip=127.0.0.1
port=-1
##xserverbpp=24
xserverbpp=128
#delay_ms=2000
[vnc-any]
name=vnc-any
lib=libvnc.so
ip=ask
port=ask5900
username=na
password=ask
#pamusername=asksame
#pampassword=asksame
#pamsessionmng=127.0.0.1
#delay_ms=2000
[neutrinordp-any]
name=neutrinordp-any
lib=libxrdpneutrinordp.so
ip=ask
port=ask3390
username=ask
password=ask
; You can override the common channel settings for each session type
#channel.rdpdr=true
#channel.rdpsnd=true
#channel.drdynvc=true
#channel.cliprdr=true
#channel.rail=true
#channel.xrdpvr=true
