The Arduino project has done an excellent job in providing a portable software interface to a number of different hardware systems.

Are there any Arduino-compatible systems which are especially applicable for very low power battery-based operation? Specifically, in an application where a device wakes up periodically (e.g. for data collection) or activated by a user button press?

Mark Harrison
  • 559
  • 3
  • 14
  • 23
  • 1
    Related to your previous question: https://arduino.stackexchange.com/questions/55813/converting-a-standard-setup-loop-sketch-to-a-low-power-application – Jot Sep 03 '18 at 22:18

1 Answers1

4

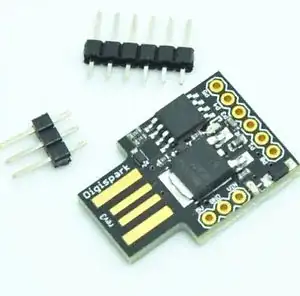

Technically you can use any arduino for that purpose with some modifications. I recommend to go with an arduino Pro Mini and remove the LED and the voltage regulator. enter image description here But if you don't need so much I/O you can go with a digispark Attiny board. enter image description here

Coder_fox
  • 688
  • 7
  • 14
  • 1
    To program a pro-mini you need a separate usb-to-serial adapter for programming (or a spare Arduino UNO) – Gerben Sep 04 '18 at 13:02
