I run macOS Mojave 10.14.6 on a MacBook Pro (Retina, 15-inch, Early 2013). Except when specified, all settings and behaviours described in this post refer to the Mac connected to a power adapter.
My Mac is configured to sleep after 20 minutes of inactivity. The display is configured to sleep after 8 minutes, and the screensaver is configured to start after 2 minutes.

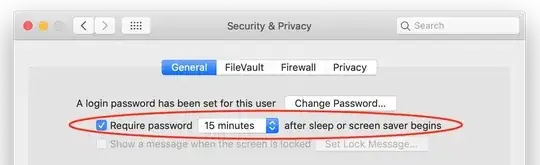

The mac is also configured to require a password 15 minutes after sleep or screen saver begins. For clarity, this setting:
System Preferences > Security and Privacy > General
However, the Mac doesn't sleep when that setting (screenshot) is set to 15 minutes. It also does not ask me to enter the password.
What happens:
- I stop interacting with the Mac.
- After 2 minutes the screen saver starts.
- Time passes: I've tested this waiting for several hours.
- The mac never sleeps, and the display never sleeps either. The screensaver simply keeps playing.
- I interact with the mac: move my finger on the touchpad, press a key.
- The screensaver gets interrupted and I'm back to my desktop. I am not asked to enter my password.
It works fine with smaller time values: immediately, 5 second, 1 minute and 5 minutes. With those values, the mac goes to sleep as expected (the display sleeps, I assume the mac sleeps as well), and when woken it's locked and it asks me to enter my password as expected.
I haven't tested it yet with larger values (1 hour, 4 hours, 8 hours), but I'll update the question when I have.
This are my pmset -g values when connected to the charger:
System-wide power settings:
Currently in use:
standbydelaylow 4200
standby 1
womp 0
halfdim 1
hibernatefile /var/vm/sleepimage
powernap 1
gpuswitch 2
networkoversleep 0
disksleep 0
standbydelayhigh 4200
sleep 20
autopoweroffdelay 28800
hibernatemode 3
autopoweroff 1
ttyskeepawake 1
displaysleep 8
highstandbythreshold 50
acwake 0
lidwake 1
I've also discovered that on battery power nothing works. The screen saver doesn't even start. The battery power pmset -g values:
System-wide power settings:
Currently in use:
standbydelaylow 4200
standby 1
halfdim 1
hibernatefile /var/vm/sleepimage
gpuswitch 2
powernap 0
disksleep 10
standbydelayhigh 4200
sleep 10
autopoweroffdelay 28800
hibernatemode 3
autopoweroff 1
ttyskeepawake 1
displaysleep 2
highstandbythreshold 50
acwake 0
lidwake 1

fud. Actually, that comment in parenthesis disappeared when I ran the command again. I'll update the question to remove it. – tompave Nov 23 '19 at 02:26
